# 3.4 底部常驻栏(Bottom bar)

为了视觉美观以及方便用户获取信息,我们必须要把内容进行分组、隔离。分隔线(divider)就是这样一条长长的细线

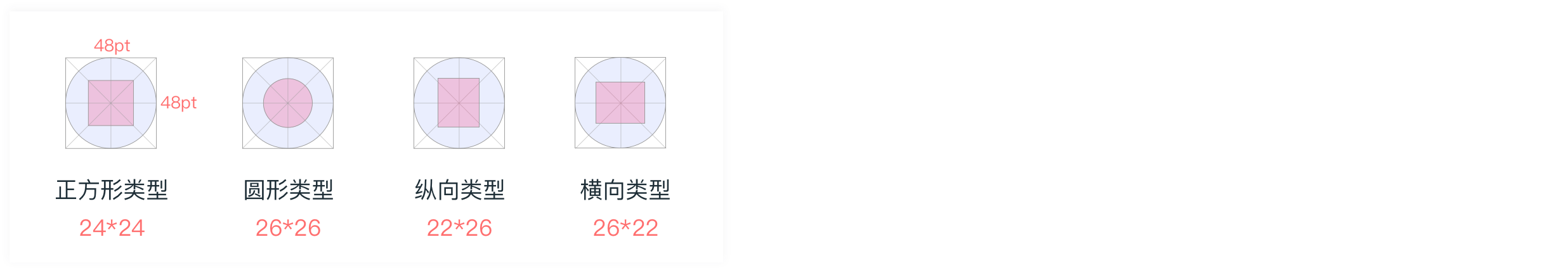

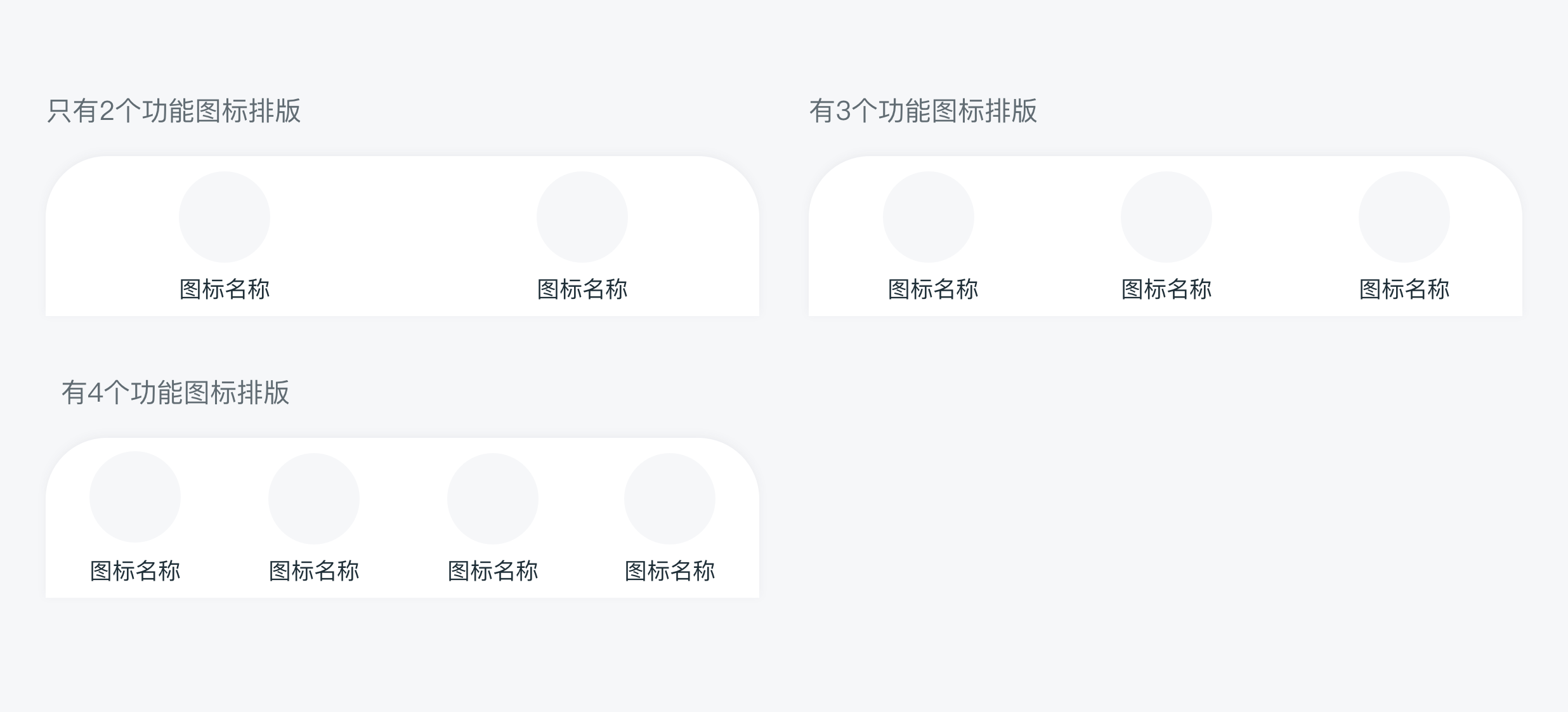

# 布局

状态:关机时,整个页面或只有开机可点击,故强化处理; 开机后,关机按钮为激活可点击状态。

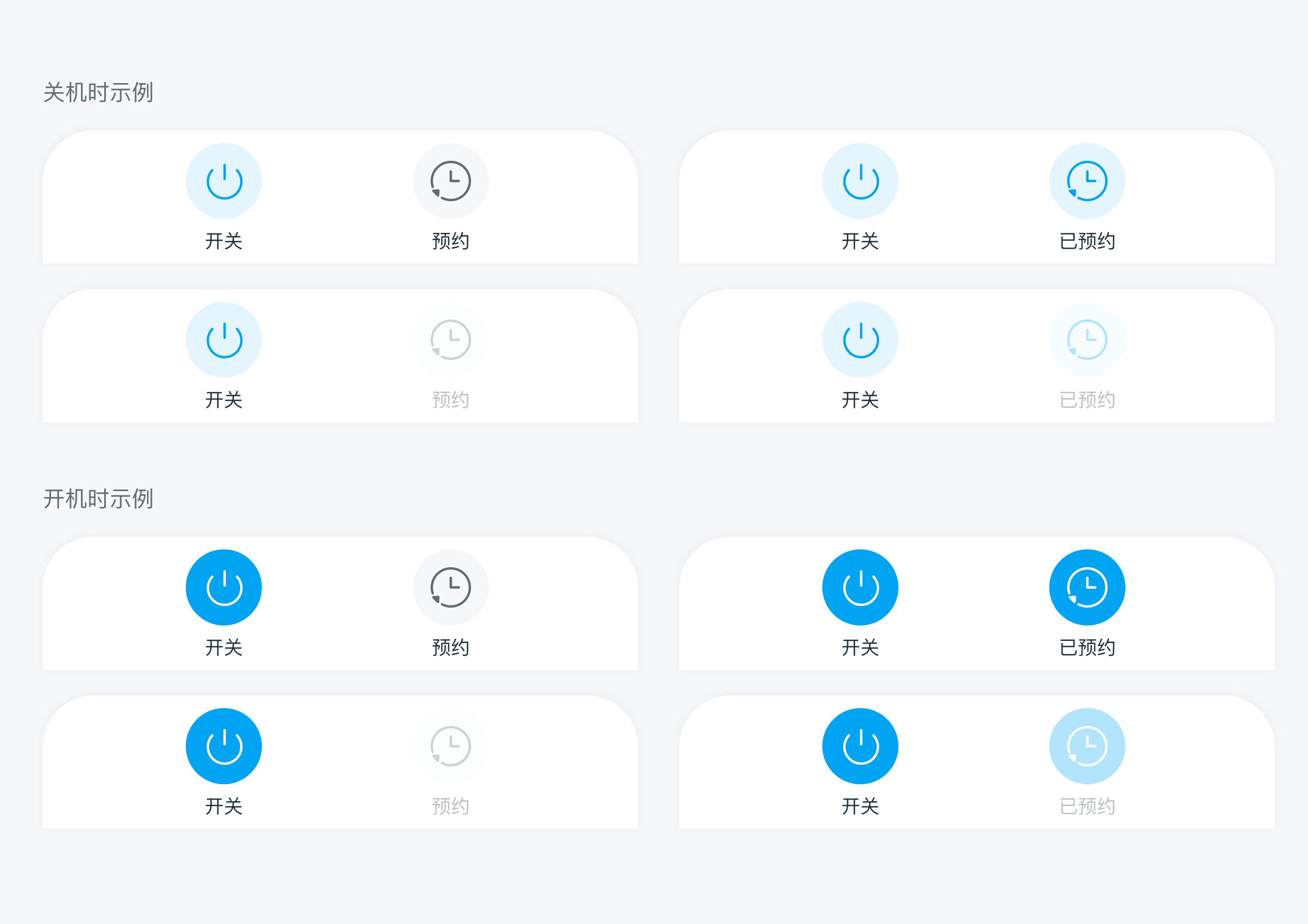

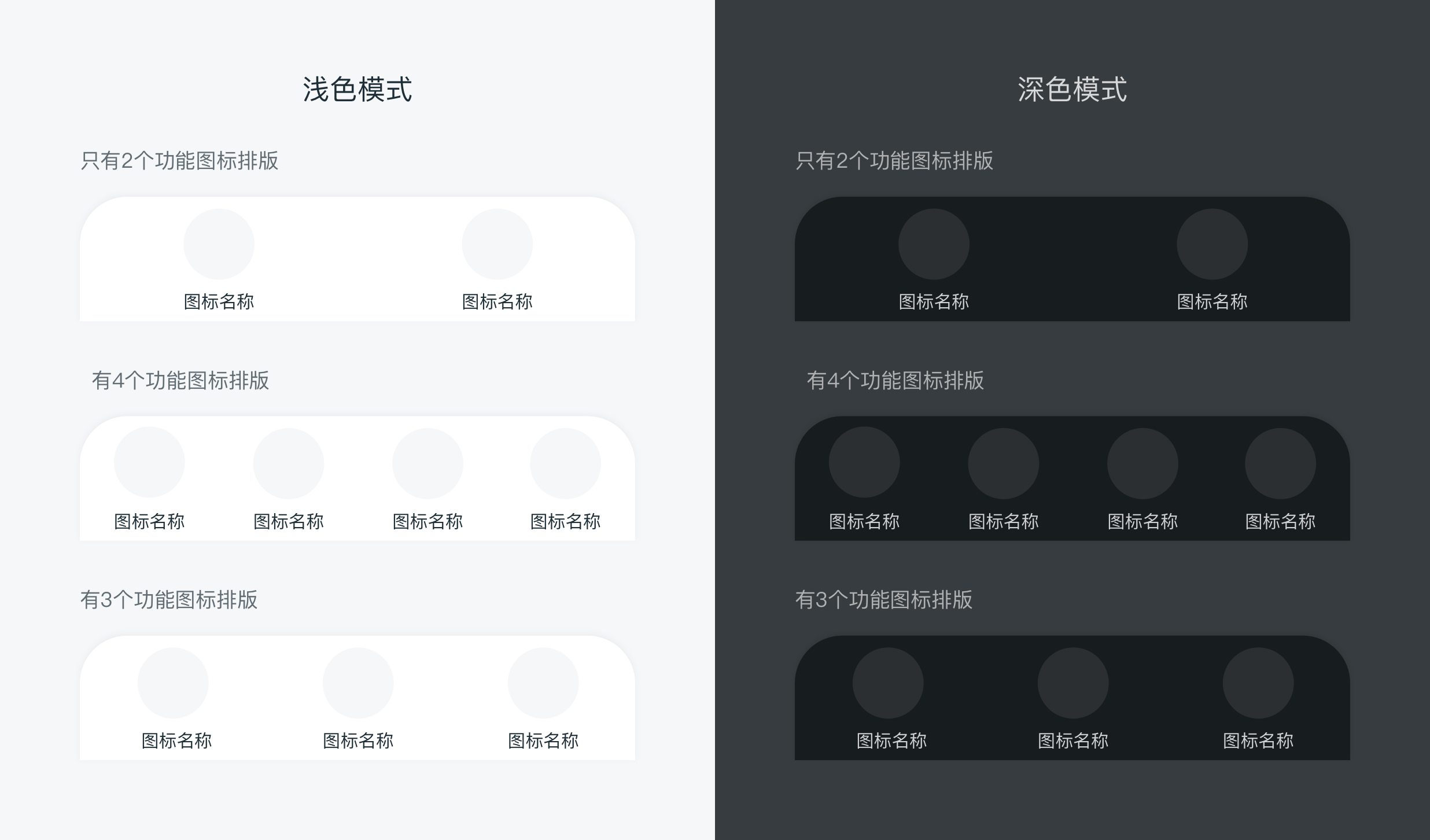

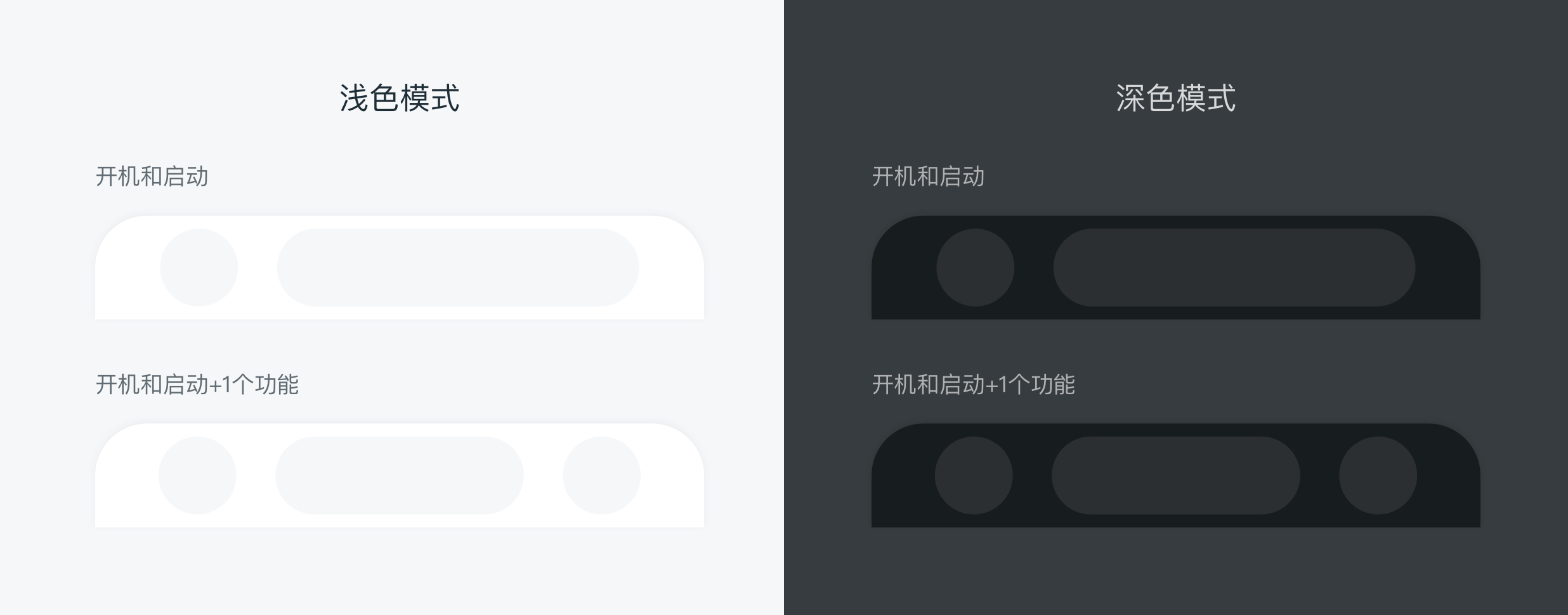

# 基础样式

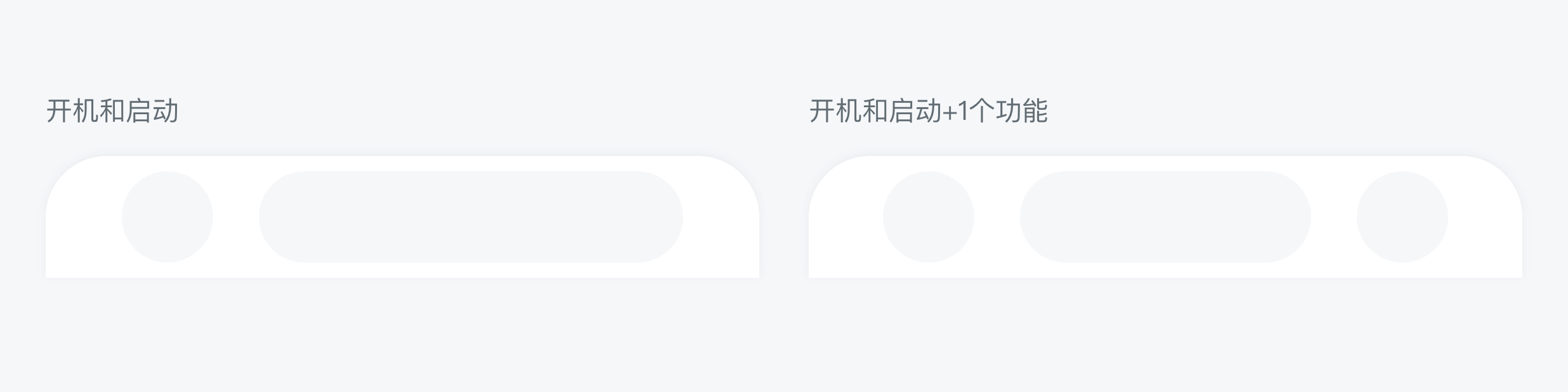

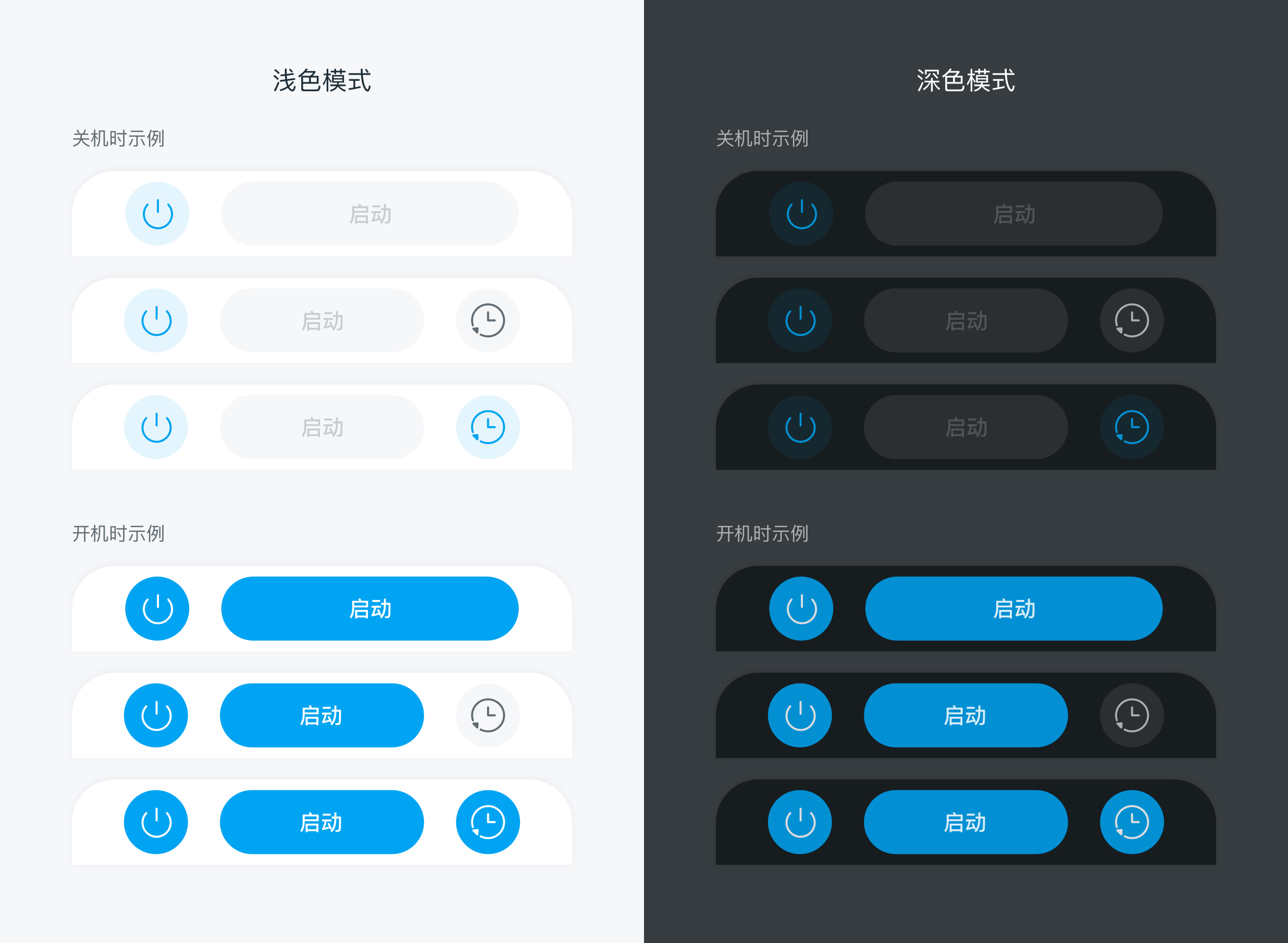

# 开关机与启动并存时

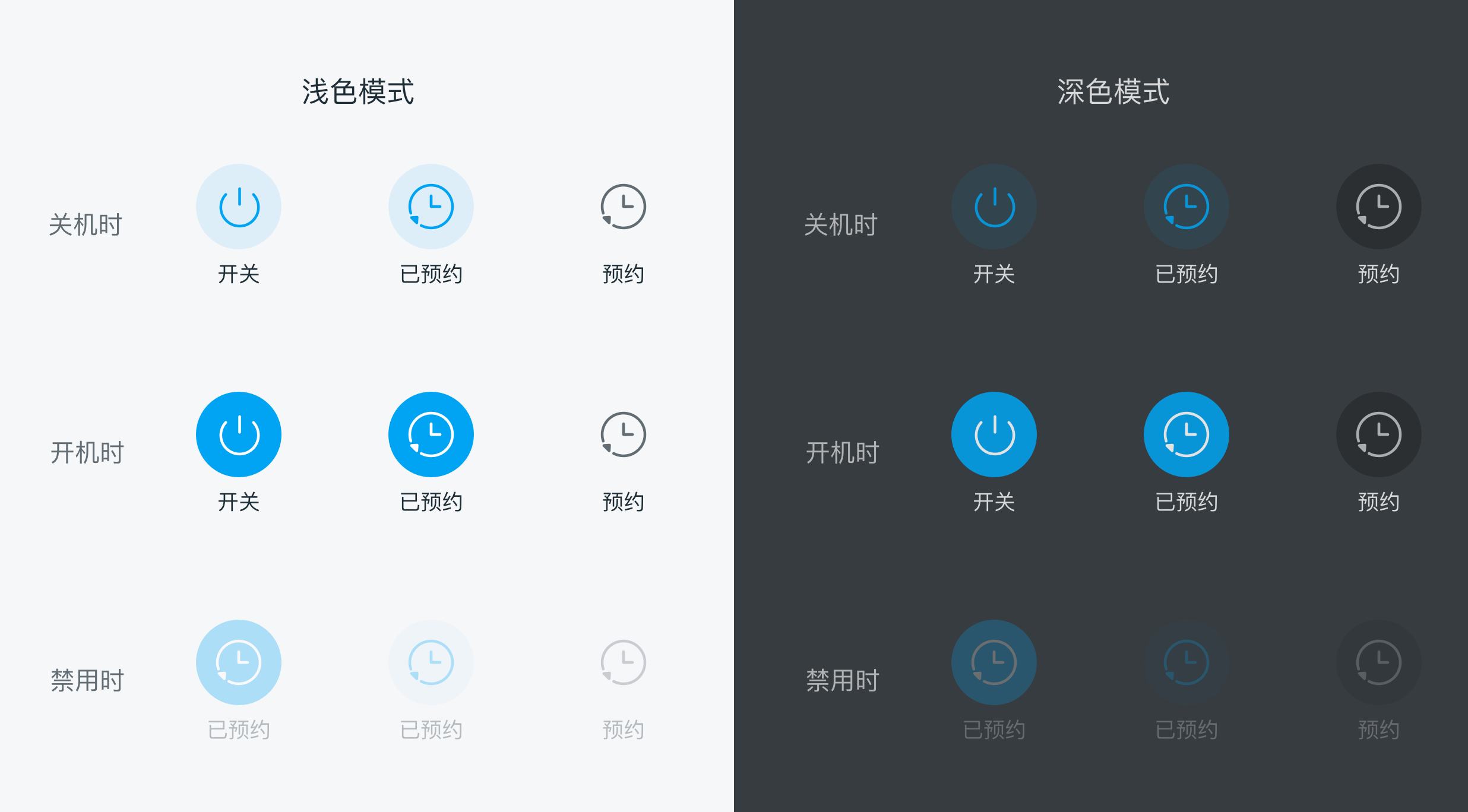

# 状态

# 基础组合样式

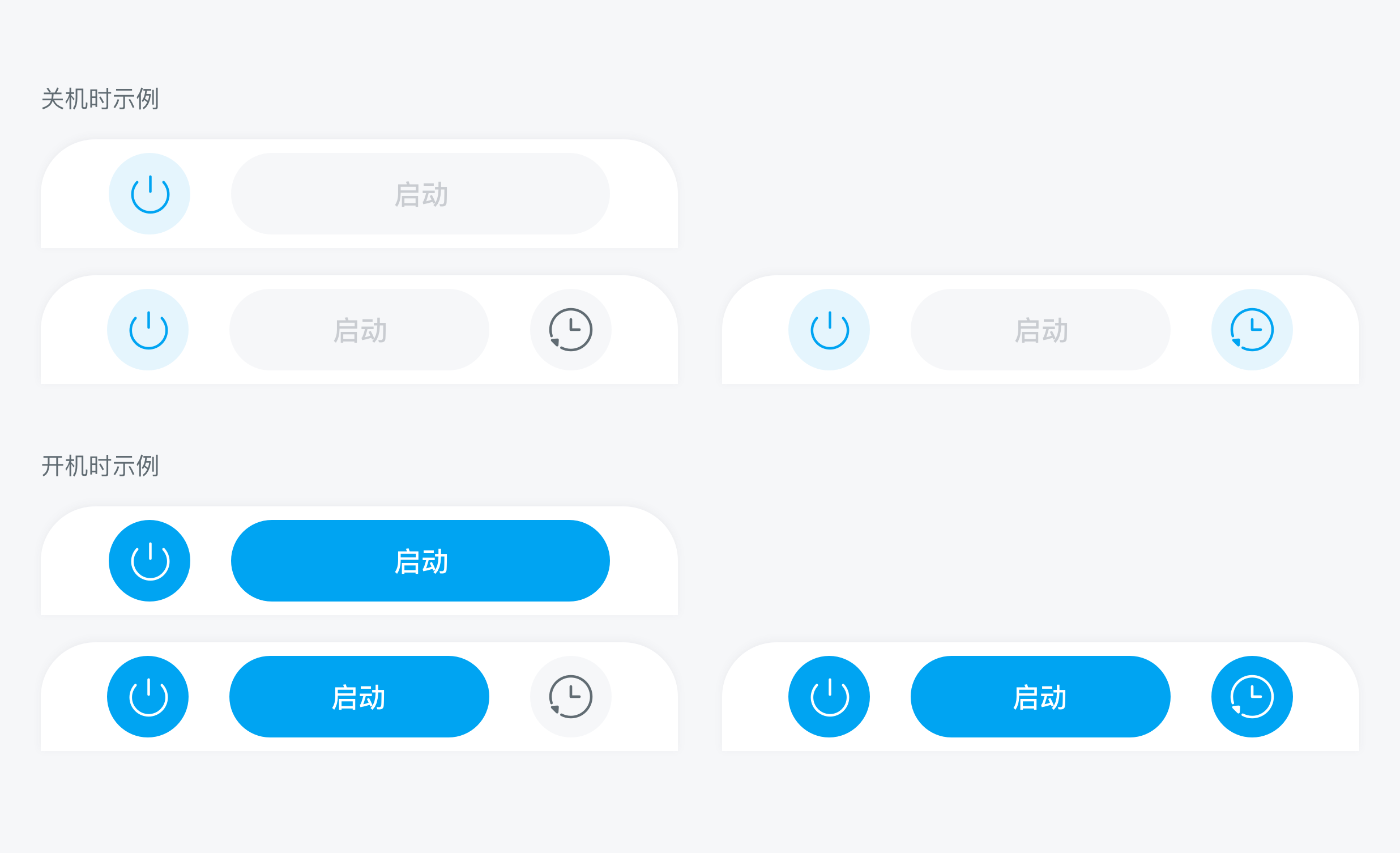

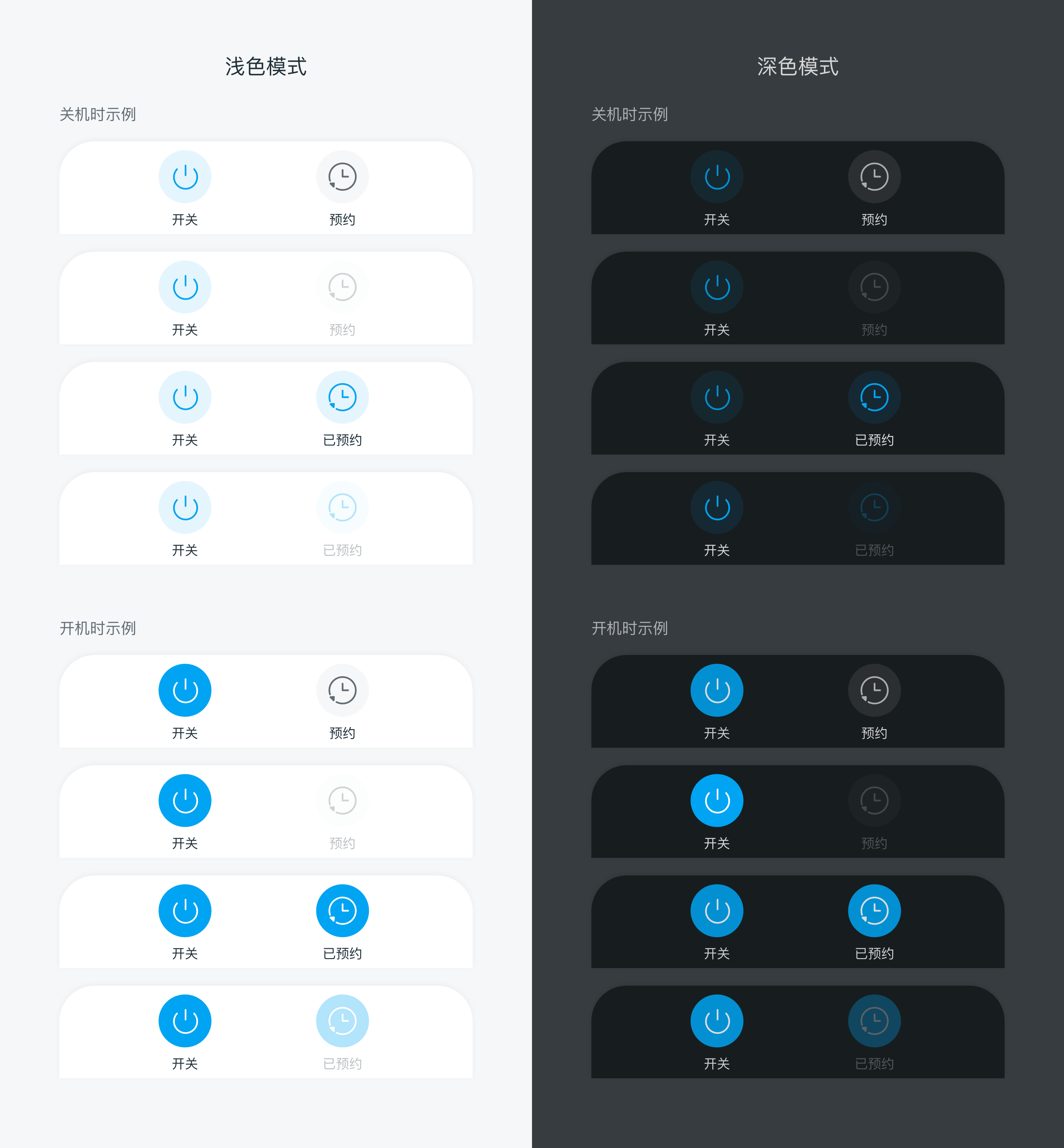

# 开关机与启动并存时组合样式

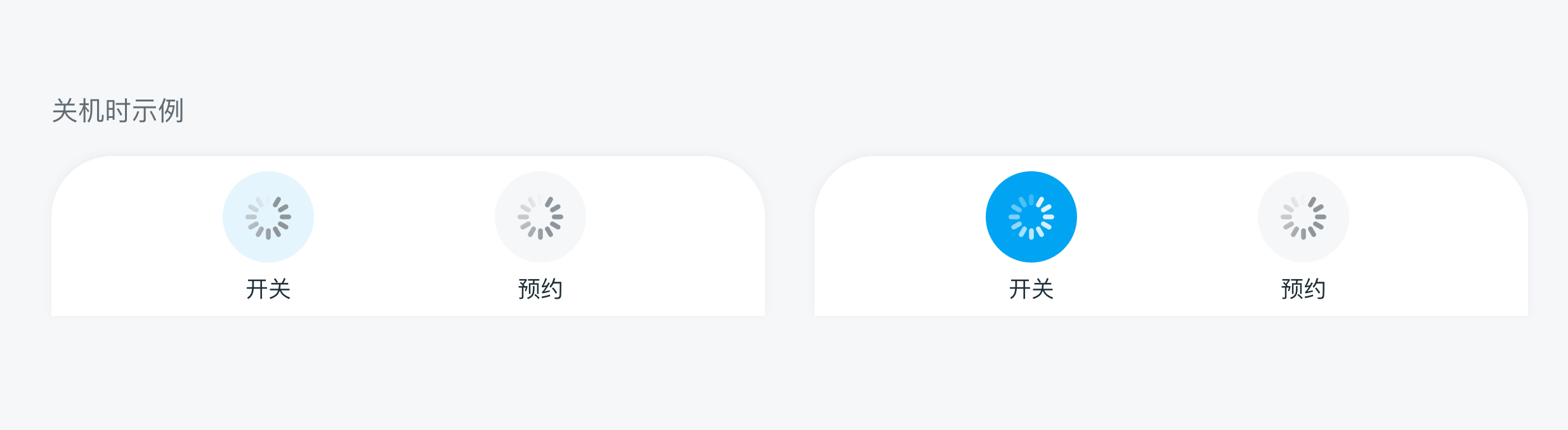

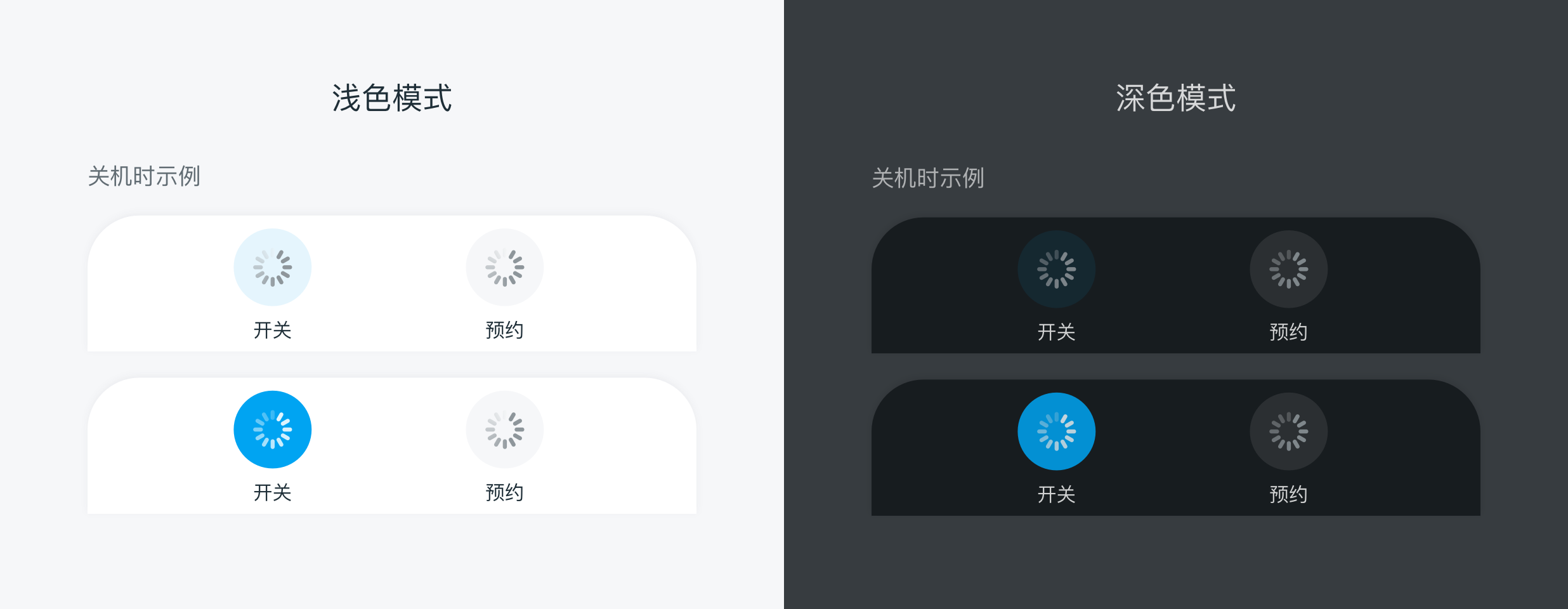

# 点击加载时

点击功能按钮后,立刻出现加载样式,加载成

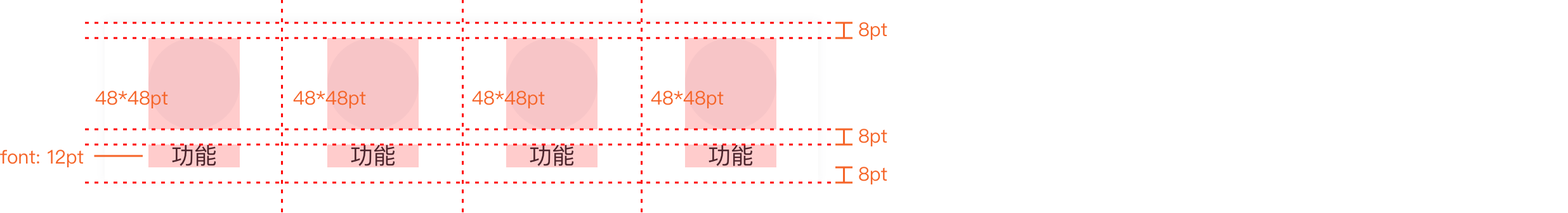

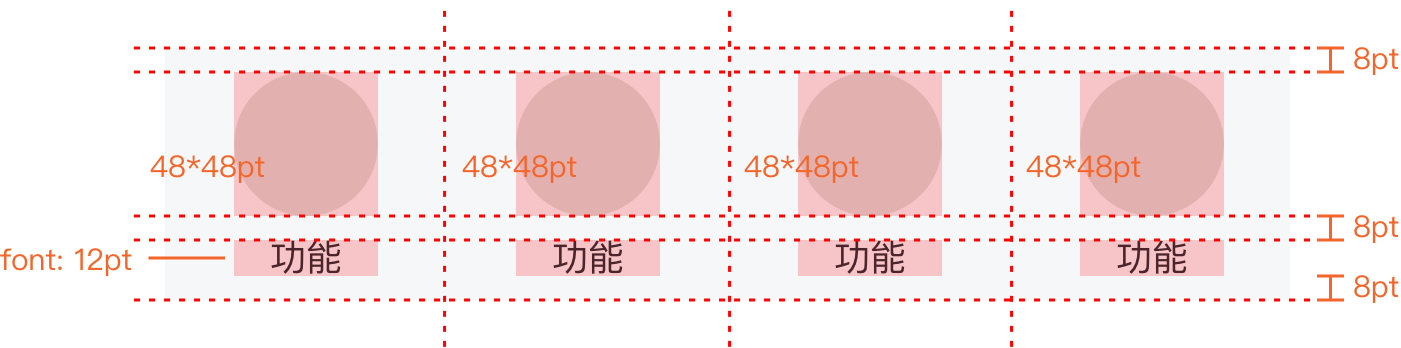

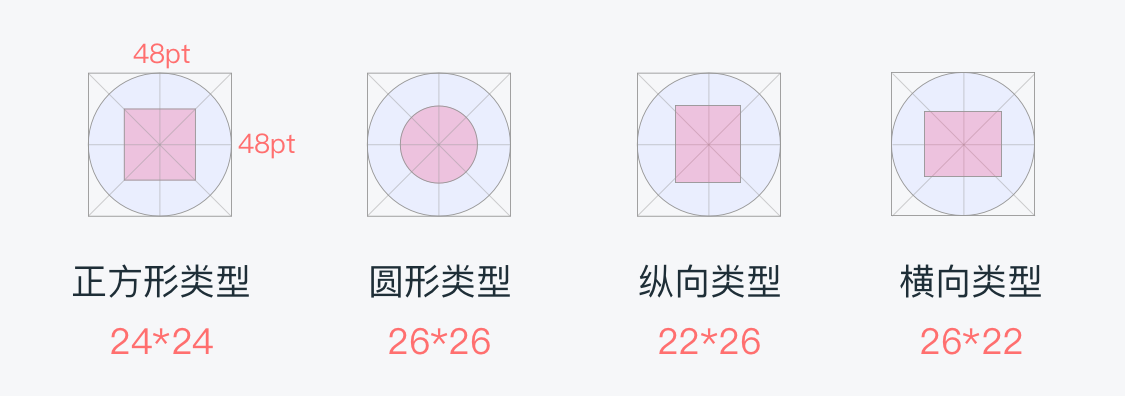

# 制作规范

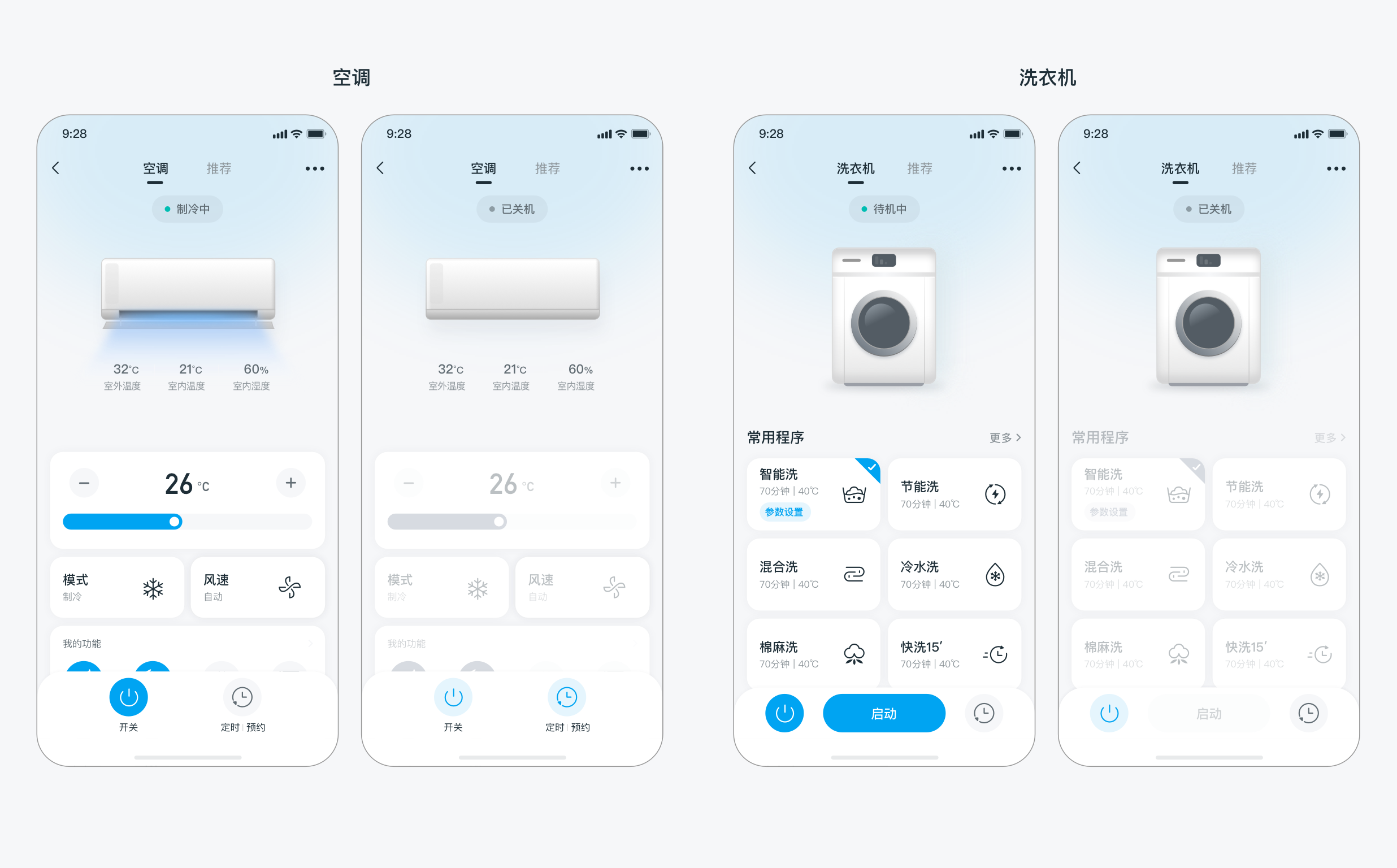

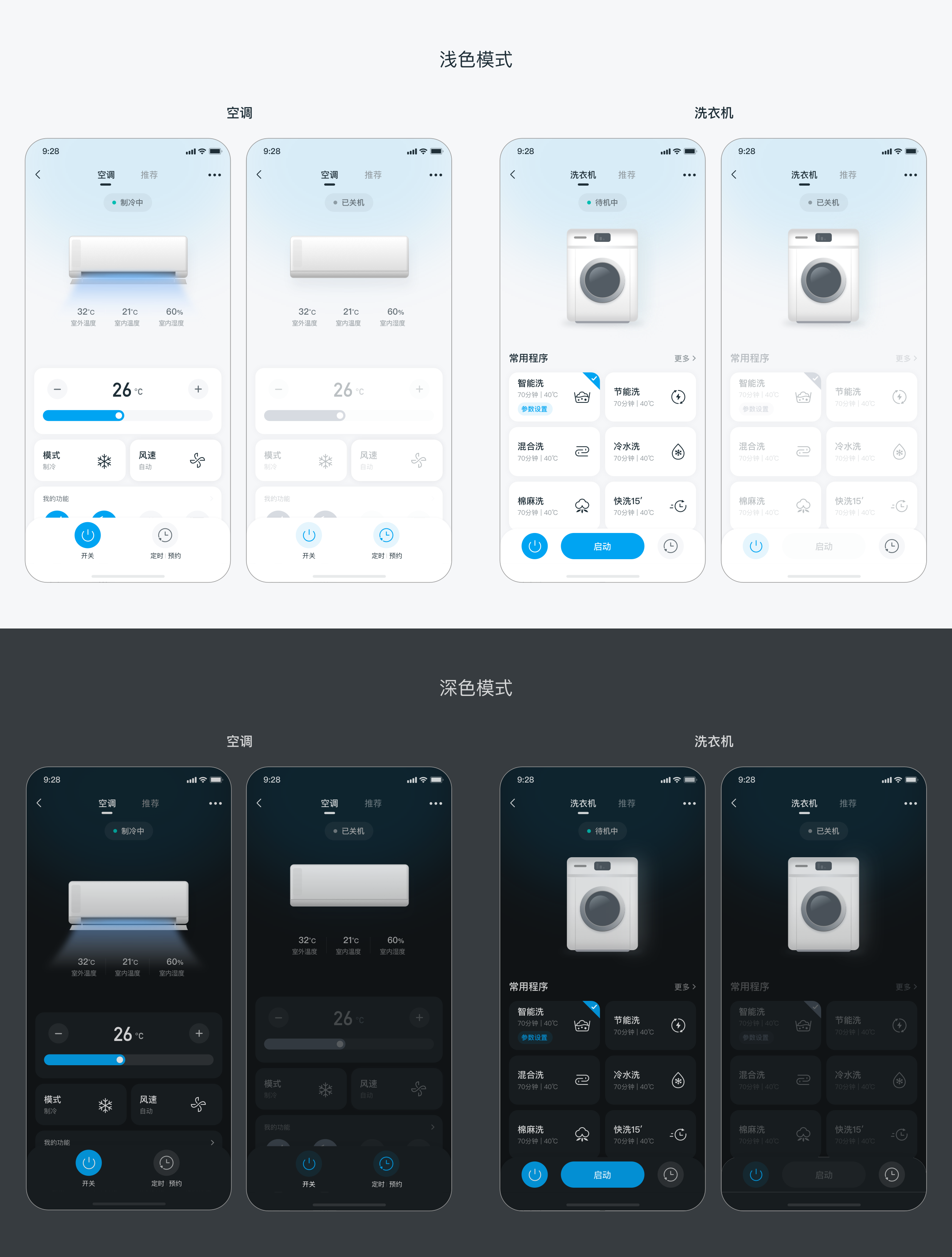

# 示例

# dof-bottom-bar 底部面板组件

底部面板组件

# 实例

# 规则

  • 通过配置列表项配置tab-groups属性。

# 基础用法

<template>
  <div class="main">
    <dof-minibar
      :left-button="leftButton"
      title="底部常驻栏"
      text-color="#ffffff"
      background-color="#00A4F2"
      @dofMinibarRightButtonClicked="minibarRightButtonClick"
    >
    </dof-minibar>
    <scroller class="content-container">
      <dof-catalog title="基础样式" background-color="#daf9ca"></dof-catalog>
      <dof-bottom-bar
        :tab-groups="scene3"
        tab-bar-position="{ position: 'relative';margin-bottom: 30px; }"
        @dofTabItemClicked="tabBarOperateHandler"
      ></dof-bottom-bar>
      <div style="width: 750px;height: 40px;"></div>
      <dof-bottom-bar
        :tab-groups="scene1"
        tab-bar-position="{ position: 'relative';margin-bottom: 30px; }"
        @dofTabItemClicked="tabBarOperateHandler"
      ></dof-bottom-bar>
      <div style="width: 750px;height: 40px;"></div>
      <dof-bottom-bar
        :tab-groups="scene2"
        tab-bar-position="{ position: 'relative';margin-bottom: 30px; }"
        @dofTabItemClicked="tabBarOperateHandler"
      ></dof-bottom-bar>
      <div style="width: 750px;height: 10px;"></div>
      <dof-catalog title="加载" background-color="#daf9ca"></dof-catalog>
      <dof-bottom-bar
        :tab-groups="scene4"
        tab-bar-position="{ position: 'relative';margin-bottom: 30px; }"
        @dofTabItemClicked="tabBarOperateHandler"
      ></dof-bottom-bar>
      <div style="height: 300px;"></div>
    </scroller>
    <dof-bottom-bar :tabGroups="tabTitles" @dofTabItemClicked="tabBarOperateHandler"></dof-bottom-bar>
  </div>
</template>

<script>
import { DofMinibar, DofIcon, DofBottomBar, DofCatalog, Utils } from 'dolphin-weex-ui'
import Config, { MOCK_DATA } from './config.js'
import NativeService from '@/service/nativeService.js'
export default {
  components: {
    DofMinibar,
    DofIcon,
    DofBottomBar,
    DofCatalog
  },
  data() {
    return {
      leftButton: 'http://dolphin-weex-dev.msmartlife.cn/cdn/images/header/icon_back_white@3x.png',
      tabTitles: Config.tabTitles,
      scene1: MOCK_DATA.mock_1,
      scene2: MOCK_DATA.mock_2,
      scene3: MOCK_DATA.mock_3,
      scene4: MOCK_DATA.mock_4
    }
  },

  created() {},

  methods: {
    minibarLeftButtonClick() {},
    minibarRightButtonClick() {
      this.$reload()
    },
    tabBarOperateHandler(e) {
      NativeService.hapticFeedback(1)
      this.$toast(e.target.title)
    }
  }
}
</script>

<style lang="scss" scoped>
.title-text {
  margin-top: 40px;
  margin-left: 8px;
  margin-bottom: 16px;
}
</style>

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87

config 文件的内容如下:

/**
 * bottom bar 配置文件
 */

export default {
  // 正常模式的tab title配置
  tabTitles: [
    {
      type: 'switch',
      title: 'power',
      text: '开机',
      iconColor: '#f2f2f2',
      disabled: false,
      icon: 'http://dolphin-weex-dev.msmartlife.cn/cdn/images/sample/water_heater/calorifier_icon_off@3x.png'
    },
    {
      type: 'mode',
      title: 'comfortable',
      text: '半胆速热',
      iconColor: '#00A4F2',
      hasDot: true,
      disabled: false,
      icon: 'http://dolphin-weex-dev.msmartlife.cn/cdn/images/sample/water_heater/calorifier_icon_half@3x.png'
    },
    {
      type: 'order',
      title: 'order',
      text: '预约',
      iconColor: '#f2f2f2',
      disabled: false,
      icon: 'http://dolphin-weex-dev.msmartlife.cn/cdn/images/sample/water_heater/calorifier_icon_timingoff@3x.png'
    }
  ]
}

export const MOCK_DATA = {
  mock_1: [
    {
      type: 'switch',
      title: 'power',
      text: '关机',
      iconColor: '#00A4F2',
      disabled: false,
      icon: 'http://dolphin-weex-dev.msmartlife.cn/cdn/images/sample/water_heater/calorifier_icon_on@3x.png'
    },
    {
      type: 'mode',
      title: 'comfortable',
      disabled: false,
      text: '半胆速热',
      hasDot: true,
      iconColor: '#00A4F2',
      icon: 'http://dolphin-weex-dev.msmartlife.cn/cdn/images/sample/water_heater/calorifier_icon_half@3x.png'
    },
    {
      type: 'mode',
      title: 'fungicidal',
      text: '满胆贮存',
      hasDot: true,
      iconColor: '#00A4F2',
      disabled: false,
      icon: 'http://dolphin-weex-dev.msmartlife.cn/cdn/images/sample/water_heater/calorifier_icon_all@3x.png'
    },
    {
      type: 'order',
      title: 'order',
      text: '已预约',
      iconColor: '#00A4F2',
      disabled: false,
      iconText: '18:00'
    }
  ],
  mock_2: [
    {
      type: 'switch',
      title: 'power',
      text: '开机',
      iconColor: '#7c879b',
      disabled: false,
      icon: 'http://dolphin-weex-dev.msmartlife.cn/cdn/images/sample/water_heater/calorifier_icon_on@3x.png'
    },
    {
      type: 'mode',
      title: 'conservation',
      text: '节能',
      iconColor: '#7c879b',
      disabled: false,
      icon: 'http://dolphin-weex-dev.msmartlife.cn/cdn/images/sample/warmer/warmer_icon_eco@3x.png'
    },
    {
      type: 'mode',
      title: 'heat',
      text: '制热(禁用)',
      hasDot: true,
      iconColor: '#7c879b',
      disabled: true,
      icon: 'http://dolphin-weex-dev.msmartlife.cn/cdn/images/sample/warmer/icon_48_bottom_yellow@3x.png'
    },
    {
      type: 'order',
      title: 'order',
      text: '已预约',
      iconText: '08:00',
      iconColor: '#7c879b',
      disabled: false,
      textColor: '#fff'
    }
  ],
  mock_3: [
    {
      type: 'switch',
      title: 'power',
      text: '开机',
      iconColor: '#7c879b',
      disabled: false,
      icon: 'http://dolphin-weex-dev.msmartlife.cn/cdn/images/sample/water_heater/calorifier_icon_on@3x.png'
    },

    {
      type: 'order',
      title: 'order',
      text: '已预约',
      iconText: '08:00',
      iconColor: '#7c879b',
      disabled: false,
      textColor: '#fff'
    }
  ],
  mock_4: [
    {
      type: 'switch',
      title: 'power',
      text: '开关',
      iconColor: '#f2f2f2',
      disabled: false,
      icon: 'http://dolphin-weex-dev.msmartlife.cn/cdn/images/sample/water_heater/calorifier_icon_off@3x.png',
      loading: true
    },
    {
      type: 'mode',
      title: 'comfortable',
      disabled: false,
      text: '半胆速热',
      hasDot: true,
      iconColor: '#00A4F2',
      icon: 'http://dolphin-weex-dev.msmartlife.cn/cdn/images/sample/water_heater/calorifier_icon_half@3x.png',
      loading: true
    },
    {
      type: 'mode',
      title: 'fungicidal',
      text: '满胆贮存',
      iconColor: '#00A4F2',
      hasDot: true,
      disabled: false,
      icon: 'http://dolphin-weex-dev.msmartlife.cn/cdn/images/sample/water_heater/calorifier_icon_all@3x.png',
      loading: true
    },
    {
      type: 'order',
      title: 'order',
      text: '已预约',
      iconColor: '#00A4F2',
      disabled: false,
      iconText: '18:00',
      loading: true
    }
  ]
}
