# 5.4 卡片-图标
当设备有较多简单模式选择操作时，推荐使用此控件样式
# 交互原则
点击icon即可开关对应模式，若有二级更多参数调整，可通过弹窗或页面进行调整后，在对应功能 icon 或名称上有变化，符合可直观查看状态的交互目标

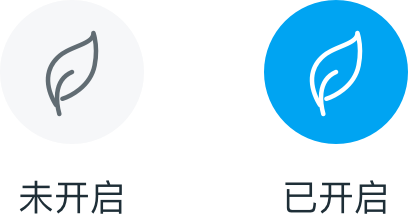

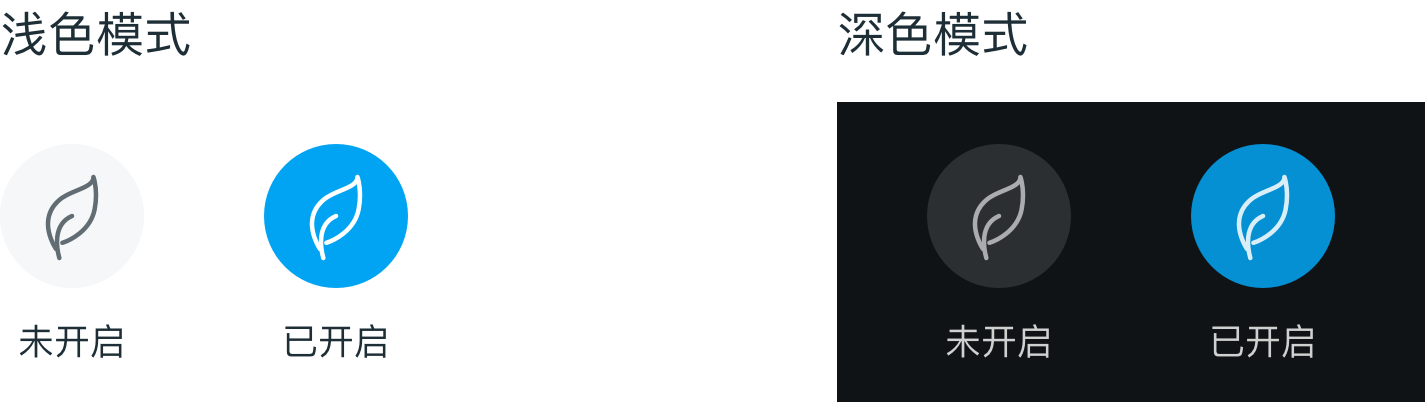

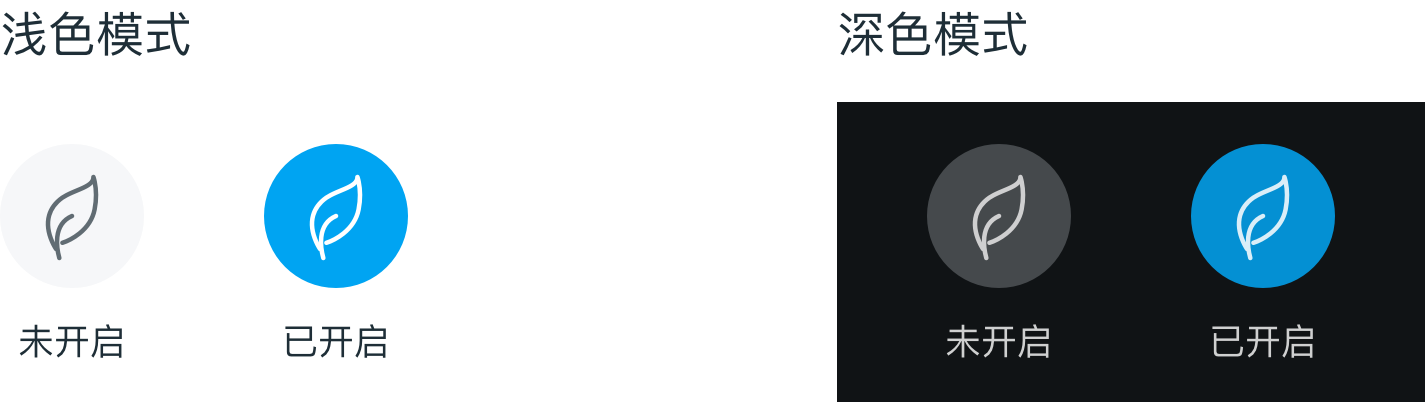

# 基础样式

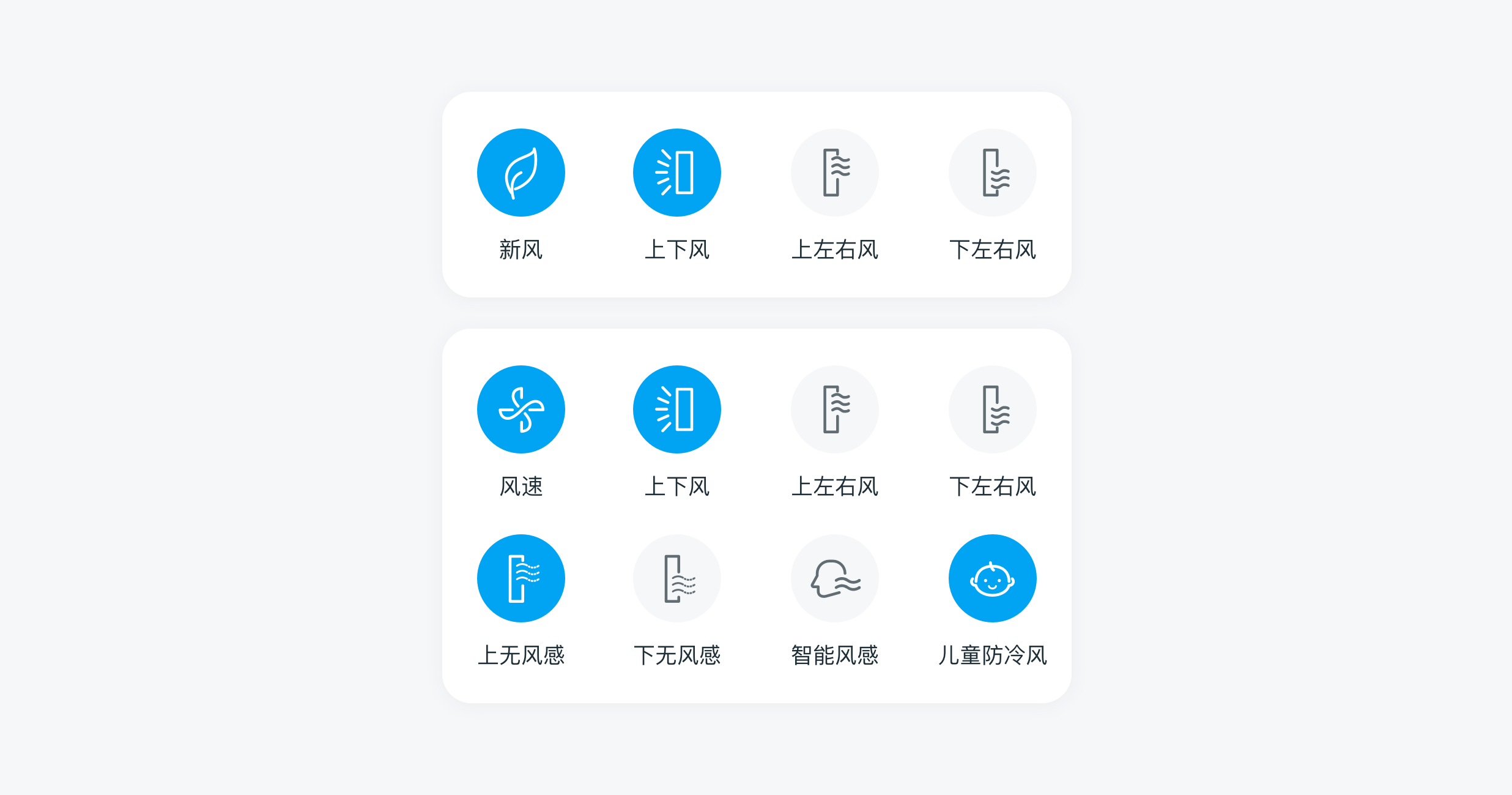

# 示例

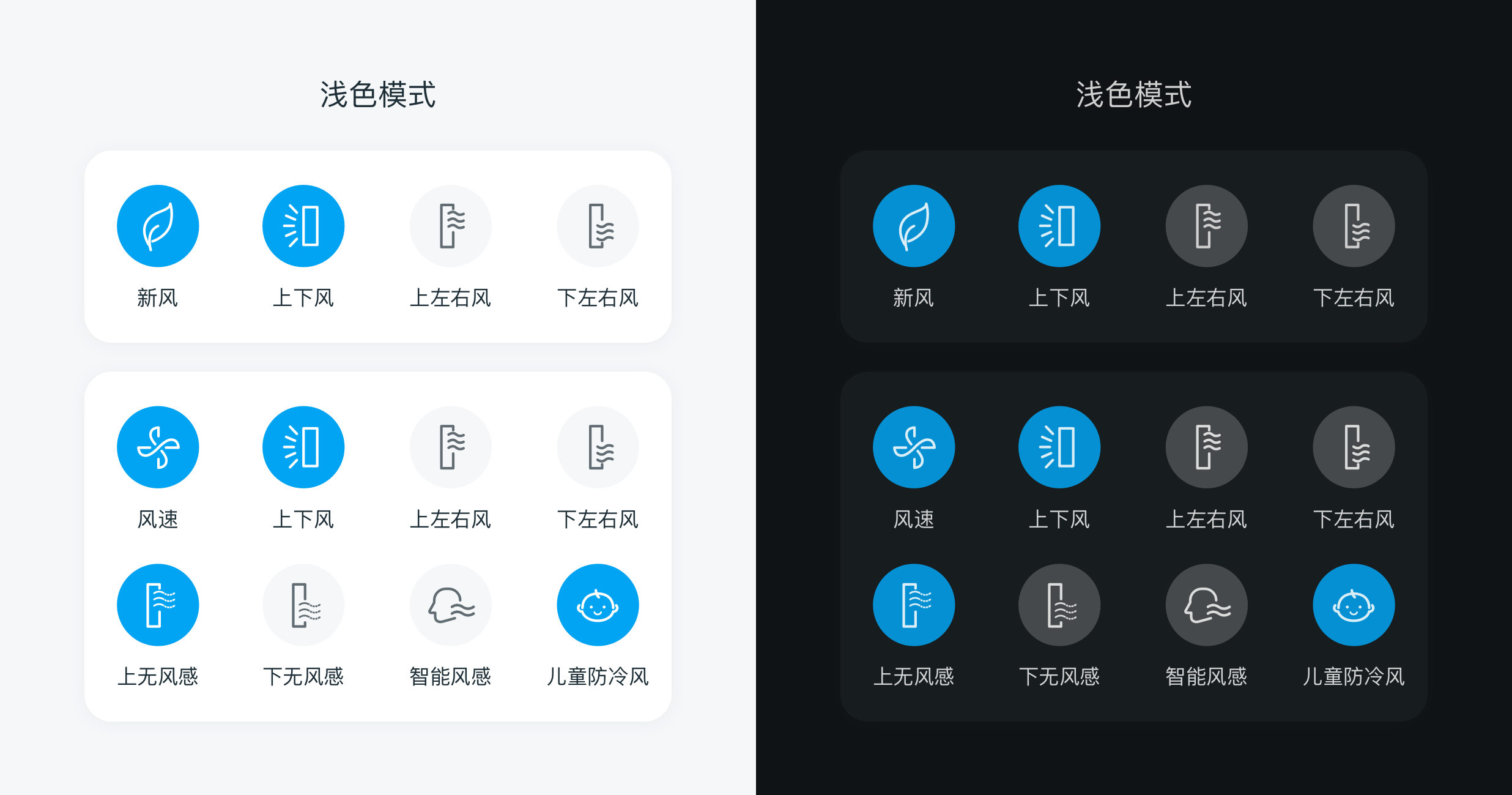

# colmo风格示例
# 实例
# 基础用法
<template>
<div class="page">
<dof-minibar
:left-button="leftButton"
title="卡片-图标"
text-color="#ffffff"
background-color="rgba(38,122,255,1)"
@dofMinibarLeftButtonClicked="back"
></dof-minibar>
<dof-tab-page
type="primary"
slot="middle"
:is-slot="false"
ref="dof-tab-page"
:tab-titles="[{ title: '通用' }, { title: 'COLMO' }]"
:tab-checked-index="activeTab"
@dofTabSelected="tabChangeHandler"
></dof-tab-page>
<slider
class="slider"
:index="activeTab"
auto-play="false"
:infinite="false"
@change="tabChangeHandler"
:style="{ height: deviceHeight - 200 + 'px' }"
>
<scroller class="scroller" :style="{ height: deviceHeight - 200 + 'px' }">
<dof-board title="标题">
<dof-card class="m-b-20">
<dof-row class="m-l-n-16 m-r-n-16">
<dof-col class="f-a-c">
<dof-icon-button
v-model="iv1"
img="http://dolphin-weex-dev.msmartlife.cn/static/component/card/image/leaf.png"
active-img="http://dolphin-weex-dev.msmartlife.cn/static/component/card/image/leaf-t.png"
text="新风"
></dof-icon-button>
</dof-col>
<dof-col class="f-a-c">
<dof-icon-button
v-model="iv2"
img="http://dolphin-weex-dev.msmartlife.cn/static/component/card/image/audio.png"
active-img="http://dolphin-weex-dev.msmartlife.cn/static/component/card/image/audio-t.png"
text="上下风"
></dof-icon-button>
</dof-col>
<dof-col class="f-a-c">
<dof-icon-button
v-model="iv3"
img="http://dolphin-weex-dev.msmartlife.cn/static/component/card/image/air.png"
active-img="http://dolphin-weex-dev.msmartlife.cn/static/component/card/image/air-t.png"
text="上左右风"
></dof-icon-button>
</dof-col>
<dof-col class="f-a-c">
<dof-icon-button
v-model="iv4"
img="http://dolphin-weex-dev.msmartlife.cn/static/component/card/image/air-bb.png"
active-img="http://dolphin-weex-dev.msmartlife.cn/static/component/card/image/air-bb-t.png"
text="下左右风"
></dof-icon-button>
</dof-col>
</dof-row>
</dof-card>
<dof-card>
<dof-row class="m-l-n-16 m-r-n-16 m-b-40">
<dof-col class="f-a-c">
<dof-icon-button
v-model="iv5"
active-img="http://dolphin-weex-dev.msmartlife.cn/static/component/card/image/fan-t.png"
img="http://dolphin-weex-dev.msmartlife.cn/static/component/card/image/fan.png"
text="风速"
></dof-icon-button>
</dof-col>
<dof-col class="f-a-c">
<dof-icon-button
v-model="iv6"
active-img="http://dolphin-weex-dev.msmartlife.cn/static/component/card/image/audio-t.png"
img="http://dolphin-weex-dev.msmartlife.cn/static/component/card/image/audio.png"
text="上下风"
></dof-icon-button>
</dof-col>
<dof-col class="f-a-c">
<dof-icon-button
v-model="iv7"
img="http://dolphin-weex-dev.msmartlife.cn/static/component/card/image/air.png"
active-img="http://dolphin-weex-dev.msmartlife.cn/static/component/card/image/air-t.png"
text="上左右风"
></dof-icon-button>
</dof-col>
<dof-col class="f-a-c">
<dof-icon-button
v-model="iv8"
img="http://dolphin-weex-dev.msmartlife.cn/static/component/card/image/air-bb.png"
active-img="http://dolphin-weex-dev.msmartlife.cn/static/component/card/image/air-bb-t.png"
text="下左右风"
></dof-icon-button>
</dof-col>
</dof-row>
<dof-row class="m-l-n-16 m-r-n-16">
<dof-col class="f-a-c">
<dof-icon-button
v-model="iv9"
active-img="http://dolphin-weex-dev.msmartlife.cn/static/component/card/image/air-v-t.png"
img="http://dolphin-weex-dev.msmartlife.cn/static/component/card/image/air-v.png"
text="上无风感"
></dof-icon-button>
</dof-col>
<dof-col class="f-a-c">
<dof-icon-button
v-model="iv10"
img="http://dolphin-weex-dev.msmartlife.cn/static/component/card/image/air-back.png"
active-img="http://dolphin-weex-dev.msmartlife.cn/static/component/card/image/air-back-t.png"
text="下无风感"
></dof-icon-button>
</dof-col>
<dof-col class="f-a-c">
<dof-icon-button
v-model="iv11"
img="http://dolphin-weex-dev.msmartlife.cn/static/component/card/image/people.png"
active-img="http://dolphin-weex-dev.msmartlife.cn/static/component/card/image/people-t.png"
text="智能风感"
></dof-icon-button>
</dof-col>
<dof-col class="f-a-c">
<dof-icon-button
v-model="iv12"
active-img="http://dolphin-weex-dev.msmartlife.cn/static/component/card/image/child-t.png"
img="http://dolphin-weex-dev.msmartlife.cn/static/component/card/image/child.png"
text="儿童防冷风"
></dof-icon-button>
</dof-col>
</dof-row>
</dof-card>
</dof-board>
</scroller>
<scroller class="scroller" :style="{ height: deviceHeight - 200 + 'px' }">
<div class="showItem" style="background-color: black;">
<dof-icon-button
v-model="iv1"
:img="img"
:active-img="activeImg"
text="功能"
:textColor="'#fff'"
color="#000"
activeColor="#000"
:borderColor="'rgba(113,113,122,1)'"
:activeBorderColor="'#B35336'"
:isHapticFeedback="true"
:isFeedbackTouch="true"
></dof-icon-button>
<dof-icon-button
v-model="iv2"
:img="img"
:active-img="activeImg"
text="功能"
:textColor="'#fff'"
color="#000"
activeColor="#000"
:borderColor="'rgba(113,113,122,1)'"
:activeBorderColor="'#B35336'"
></dof-icon-button>
<dof-icon-button
v-model="iv1"
:img="img"
:active-img="activeImg"
text="功能"
:isShowTriangle="true"
:textColor="'#fff'"
color="#000"
activeColor="#000"
:borderColor="'rgba(113,113,122,1)'"
:activeBorderColor="'#B35336'"
></dof-icon-button>
<dof-icon-button
v-model="iv2"
:img="img"
:active-img="activeImg"
text="功能"
:isShowTriangle="true"
:textColor="'#fff'"
color="#000"
activeColor="#000"
:borderColor="'rgba(113,113,122,1)'"
:activeBorderColor="'#B35336'"
></dof-icon-button>
</div>
<div class="showItem" style="background-color: black;">
<dof-icon-button
v-model="iv1"
:img="img"
:active-img="activeImg"
text="功能"
:textColor="'#fff'"
color="#000"
activeColor="#000"
:borderColor="'rgba(113,113,122,1)'"
:activeBorderColor="'#B35336'"
:touchColor="'#71717A'"
:isLoading="true"
:loadingImg="'white'"
></dof-icon-button>
<dof-icon-button
v-model="iv2"
:img="img"
:active-img="activeImg"
text="功能"
:textColor="'#fff'"
color="#000"
activeColor="#000"
:borderColor="'rgba(113,113,122,1)'"
:activeBorderColor="'#B35336'"
:touchColor="'#71717A'"
:isLoading="true"
:loadingImg="'white'"
></dof-icon-button>
<dof-icon-button
v-model="iv1"
:img="img"
:active-img="activeImg"
text="功能"
:isShowTriangle="true"
:textColor="'#fff'"
color="#000"
activeColor="#000"
:borderColor="'rgba(113,113,122,1)'"
:activeBorderColor="'#B35336'"
:touchColor="'#71717A'"
:isLoading="true"
:loadingImg="'white'"
></dof-icon-button>
<dof-icon-button
v-model="iv2"
:img="img"
:active-img="activeImg"
text="功能"
:isShowTriangle="true"
:textColor="'#fff'"
color="#000"
activeColor="#000"
:borderColor="'rgba(113,113,122,1)'"
:activeBorderColor="'#B35336'"
:isFeedbackTouch="true"
:touchColor="'#71717A'"
:isLoading="true"
:loadingImg="'white'"
></dof-icon-button>
</div>
</scroller>
</slider>
</div>
</template>
<script>
import { DofBoard, DofRow, DofCol, DofCard, DofIconButton, DofMinibar, DofTabPage } from 'dolphin-weex-ui'
export default {
components: {
DofBoard,
DofRow,
DofCol,
DofCard,
DofIconButton,
DofMinibar,
DofTabPage
},
data() {
return {
leftButton: 'http://dolphin-weex-dev.msmartlife.cn/cdn/images/header/icon_back_white@3x.png',
iv1: true,
iv2: true,
iv3: false,
iv4: false,
iv5: true,
iv6: true,
iv7: false,
iv8: false,
iv9: true,
iv10: false,
iv11: false,
iv12: true,
img: 'http://dolphin-weex-dev.msmartlife.cn/static/component/card/image/leaf.png',
activeImg: 'http://dolphin-weex-dev.msmartlife.cn/static/component/card/image/leaf-t.png',
activeTab: 0,
deviceHeight: weex.config.env.deviceHeight
}
},
methods: {
tabChangeHandler(val) {
this.activeTab = val.index
}
}
}
</script>
<style scoped>
.page {
background-color: #f9f9f9;
}
.slider {
width: 750px;
}
.scroller {
width: 750px;
}
.f-a-c {
align-items: center;
}
.m-l-n-16 {
margin-left: -16px;
}
.m-r-n-16 {
margin-right: -16px;
}
.m-b-20 {
margin-bottom: 20px;
}
.showItem {
padding-top: 30px;
padding-bottom: 30px;
display: flex;
flex-direction: row;
justify-content: space-around;
}
</style>
