# 2.3 首页上划

顶部保留原本默认时的色彩,另外留出 20px 过渡到透明。划动到最底部时,为保证浏览体验,保证至少留出40px。

# 基础样式

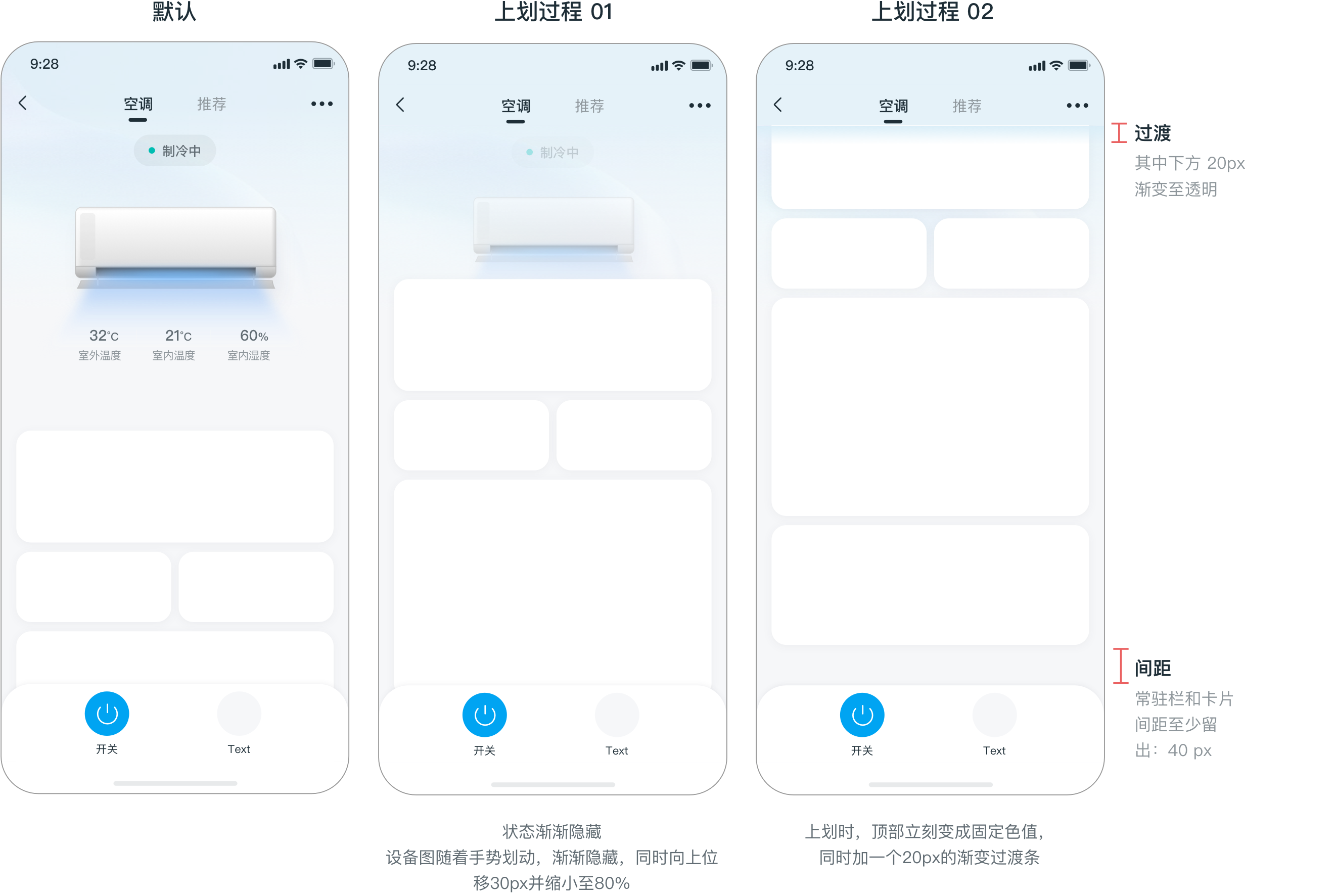

首页上划时,底部渐变背景位置保持不变,顶部状态栏和标题栏渐显出现一个固定色,并跟随一个高度20px的渐变条(如下图)。

# 顶部信息常驻

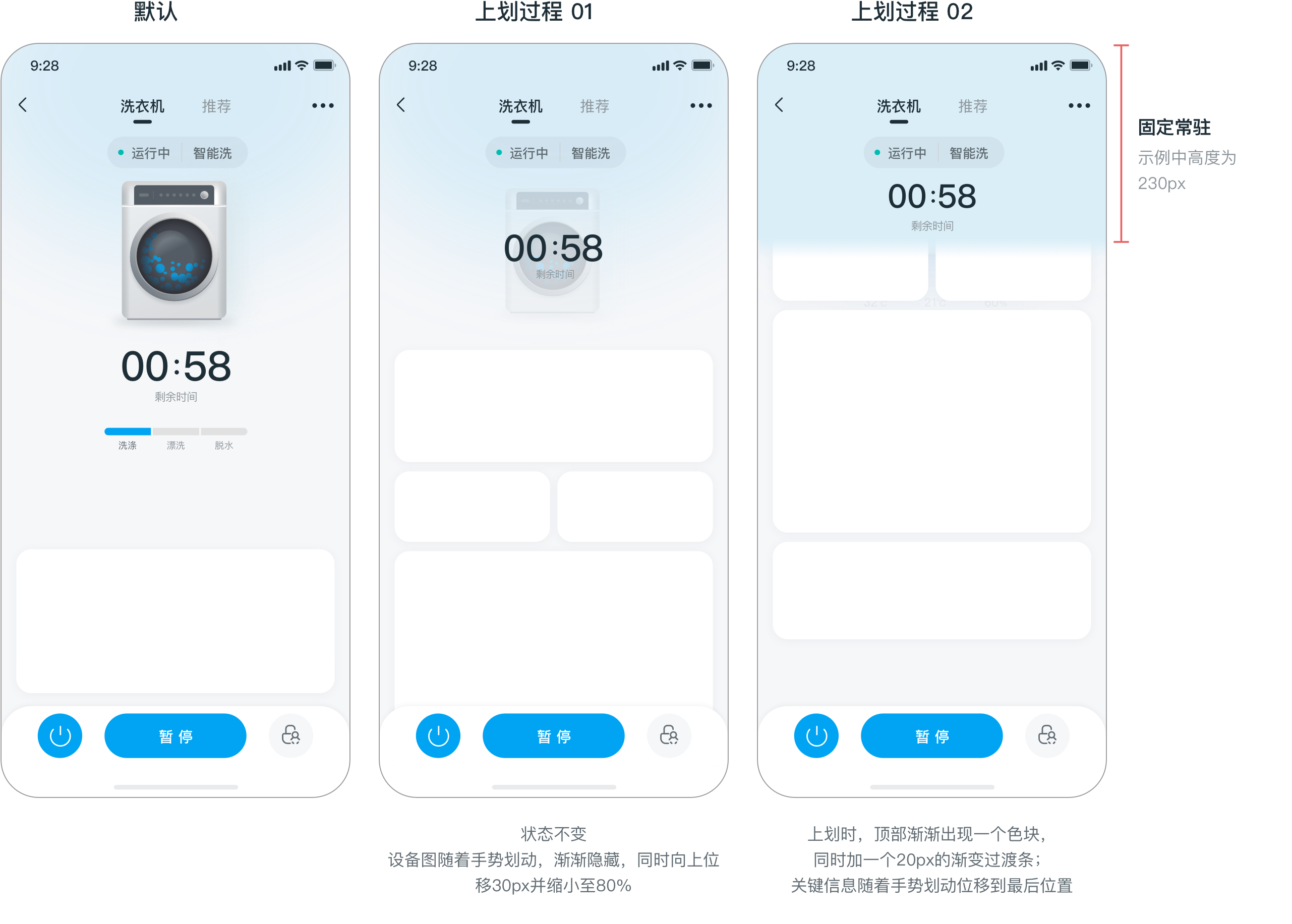

首页上划,有关键信息展示时,可置顶固定在顶部,方便快速浏览到信息。

# 基础实例

# 用法


<template>
  <div class="wrapper">
    <dof-minibar
      title="空调"
      :background-color="startColor"
      text-color="#ffffff"
      :left-button="leftButton"
      @dofMinibarLeftButtonClicked="back"
      right-text=""
    ></dof-minibar>
    <scroller
      class="scroller"
      @scroll="scrollHandler"
      show-scrollbar="false"
      :style="{ 'background-color': startColor }"
    >
      <dof-gradient :startColor="startColor" :height="mainContentHeight"></dof-gradient>
      <div class="main-content" ref="mainContent">
        <!-- 滑动时需处理的部分---start -->
        <div class="content-detail" ref="contentDetail" :style="{ transform: elementStyle.transform }">
          <div class="cold-box">
            <div class="cold-box-dot"></div>
            <text class="cold-box-text">制冷中</text>
          </div>
          <image :src="air_conditioner_img" class="main-image" :style="{ opacity: elementStyle.opacity }"></image>
          <div class="temp-box">
            <div class="temp-box-div">
              <text class="temp-box-num">32°C</text>
              <text class="temp-box-text">室外温度</text>
            </div>
            <div class="temp-line"></div>
            <div class="temp-box-div">
              <text class="temp-box-num">21°C</text>
              <text class="temp-box-text">室内温度</text>
            </div>
            <div class="temp-line"></div>
            <div class="temp-box-div">
              <text class="temp-box-num">60%</text>
              <text class="temp-box-text">室内湿度</text>
            </div>
          </div>
        </div>
      </div>
      <!-- 滑动时需处理的部分---end -->
      <div class="board-box">
        <dof-board>
          <dof-card class="m-b-10">
            <div class="placeholder"></div>
          </dof-card>
          <dof-row class="m-b-10">
            <dof-col>
              <dof-card>
                <div class="placeholder"></div>
              </dof-card>
            </dof-col>
            <dof-col>
              <dof-card>
                <div class="placeholder"></div>
              </dof-card>
            </dof-col>
          </dof-row>
          <dof-row class="m-b-10">
            <dof-col>
              <dof-card>
                <div class="placeholder"></div>
              </dof-card>
            </dof-col>
          </dof-row>
          <dof-row class="m-b-10">
            <dof-col>
              <dof-card>
                <div class="placeholder"></div>
              </dof-card>
            </dof-col>
            <dof-col>
              <dof-card>
                <div class="placeholder"></div>
              </dof-card>
            </dof-col>
          </dof-row>
          <dof-row class="m-b-10">
            <dof-col>
              <dof-card>
                <div class="placeholder"></div>
              </dof-card>
            </dof-col>
          </dof-row>
        </dof-board>
      </div>
      <div class="h-300px"></div>
      <dof-bottom-bar :tabGroups="tabTitles"></dof-bottom-bar>
    </scroller>
  </div>
</template>

<style scoped>
.wrapper {
  position: relative;
}
.scroller {
  position: relative;
  flex: 1;
  width: 750px;
  height: 2000px;
}
.h-300px {
  width: 750px;
  height: 0;
  padding-bottom: 300px;
  background-color: #f9f9f9;
  position: relative;
  top: -2px;
}
.main-content {
  width: 750px;
  position: absolute;
  top: 0;
  left: 0;
  z-index: 100;
  padding-bottom: 100px;
}
.board-box {
  padding-top: 100px;
  background-color: #f9f9f9;
}

.m-b-10 {
  margin-bottom: 20px;
}

.placeholder {
  height: 160px;
}
.main-image {
  width: 660px;
  height: 440px;
}
.content-detail {
  position: relative;
  display: flex;
  justify-content: center;
  align-items: center;
  transition-property: all;
  transition-duration: 0.3s;
  transition-delay: 0s;
  transition-timing-function: cubic-bezier(0.25, 0.1, 0.25, 1);
  transform: scale(1, 1);
  opacity: 1;
}
.cold-box {
  padding: 20px 32px;
  background-color: #eadede;
  margin: 24px auto;
  border-radius: 40px;
  display: flex;
  flex-direction: row;
  justify-content: center;
  align-items: center;
}
.cold-box-dot {
  width: 14px;
  height: 14px;
  border-radius: 14px;
  margin-right: 16px;
  background-color: #25cf42;
}
.cold-box-text {
  font-size: 28px;
  color: #666666;
}
.temp-box {
  display: flex;
  flex-direction: row;
  align-items: center;
  justify-content: center;
  color: #666666;
  font-size: 32px;
}
.temp-box-num {
  color: #666666;
  text-align: center;
}
.temp-box-text {
  color: #8a8a8f;
  font-size: 24px;
  margin-top: 16px;
  text-align: center;
}
.temp-box-div {
  padding-right: 33px;
  padding-left: 33px;
}
.temp-line {
  width: 2px;
  height: 60px;
  background-color: #e5e5e8;
}
</style>

<script>
import Title from 'src/_mods/title.vue'
import Category from 'src/_mods/catalog'
const dom = weex.requireModule('dom')
import {
  DofMinibar,
  DofGradient,
  DofBoard,
  DofRow,
  DofCol,
  DofCardGroup,
  DofCard,
  DofCardItem,
  DofBottomBar
} from 'dolphin-weex-ui'
const modal = weex.requireModule('modal')

module.exports = {
  components: {
    Title,
    Category,
    DofMinibar,
    DofGradient,
    DofBoard,
    DofRow,
    DofCol,
    DofCardGroup,
    DofCard,
    DofCardItem,
    DofBottomBar
  },
  data() {
    return {
      air_conditioner_img: 'http://dolphin-weex-dev.msmartlife.cn/cdn/images/common/air_conditioner.png',
      leftButton: 'http://dolphin-weex-dev.msmartlife.cn/cdn/images/header/icon_back_white@3x.png',
      width: '750',
      height: '700',
      startColor: '#29C3FF',
      endColor: '#ffffff',
      value: '0',
      tabTitles: [
        {
          type: 'power',
          title: 'power',
          text: '开关',
          iconColor: '#267AFF',
          disabled: false,
          icon: 'http://dolphin-weex-dev.msmartlife.cn/cdn/images/sample/water_heater/calorifier_icon_on@3x.png'
        },
        {
          type: 'timing',
          title: 'timing',
          text: '预约',
          iconColor: '#f2f2f2',
          iconTextColor: '#666666',
          disabled: false,
          icon:
            'http://dolphin-weex-dev.msmartlife.cn/cdn/images/sample/water_heater/calorifier_icon_timingoffbai@3x.png'
        }
      ],
      preScrollY: 0,
      mainContentHeight: 0
    }
  },

  mounted() {
    this.$nextTick(() => {
      let ele = this.$refs.mainContent
      this.getEleHeight(ele.children[0])
    })
  },
  methods: {
    back() {},
    scrollHandler(e) {
      let currScrollY = parseInt(e.contentOffset.y)
      if (currScrollY > this.preScrollY) {
        //页面向下滑
        this.scrollDirection = 'down'
      } else {
        //页面向上滑
        this.scrollDirection = 'up'
      }
      this.preScrollY = currScrollY
    },
    getEleHeight(ele) {
      let self = this
      dom.getComponentRect(ele, result => {
        let size = result.size || {}
        let height = parseInt(size.height)
        if (!height) {
          self.getEleHeight(ele)
        } else {
          self.mainContentHeight = height
        }
      })
    }
  },

  computed: {
    elementStyle() {
      let { preScrollY, mainContentHeight } = this
      let scrollTop = preScrollY * -1
      let currScale = parseFloat(1 - parseFloat(scrollTop / mainContentHeight).toFixed(2)).toFixed(2)
      if (scrollTop >= mainContentHeight) {
        currScale = 1
      }
      if (currScale <= 0.8) {
        currScale = 0.8
      }
      if (currScale >= 1) {
        currScale = 1
      }
      return {
        transform: `scale(${currScale}, ${currScale})`,
        opacity: currScale
      }
    }
  }
}
</script>


1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322

# 固定顶部实例

# 用法


<template>
  <div class="wrapper">
    <div ref="titleBar">
      <dof-minibar
        title="洗衣机"
        :background-color="startColor"
        text-color="#ffffff"
        :left-button="leftButton"
        @dofMinibarLeftButtonClicked="back"
        right-text=""
      ></dof-minibar>
    </div>
    <scroller
      class="scroller"
      @scroll="scrollHandler"
      show-scrollbar="false"
      :style="{ 'background-color': startColor }"
    >
      <dof-gradient :startColor="startColor" :height="mainContentHeight"></dof-gradient>
      <!-- sticky部分 -->
      <div class="sticy-box" :style="{ top: titleBarHeight + 'px', opacity: stickyEleOpacity }">
        <dof-gradient :startColor="startColor" :height="300"></dof-gradient>
        <div class="sticky-content">
          <div class="cold-box cold-box-sticky">
            <div class="cold-box-dot"></div>
            <text class="cold-box-text">运行中</text>
            <text class="cold-box-line"></text>
            <text class="cold-box-text">智能洗</text>
          </div>
          <div>
            <div class="time-box">
              <text class="time-box-text">00</text>
              <div class="time-box-text time-box-dot-section">
                <text class="time-box-dot"></text>
                <text class="time-box-dot"></text>
              </div>
              <text class="time-box-text">58</text>
            </div>
            <text class="left-time-text">剩余时间</text>
          </div>
        </div>
      </div>
      <!-- 滑动时需处理的部分---start -->
      <div class="main-content" ref="mainContent">
        <div class="content-detail" ref="contentDetail" :style="{ transform: elementStyle.transform }">
          <div class="cold-box">
            <div class="cold-box-dot"></div>
            <text class="cold-box-text">运行中</text>
            <text class="cold-box-line"></text>
            <text class="cold-box-text">智能洗</text>
          </div>
          <image :src="wash_clothes_img" class="main-image" :style="{ opacity: elementStyle.opacity }"></image>
          <div class="">
            <div class="time-box">
              <text class="time-box-text">00</text>
              <div class="time-box-text time-box-dot-section">
                <text class="time-box-dot"></text>
                <text class="time-box-dot"></text>
              </div>
              <text class="time-box-text">58</text>
            </div>
            <text class="left-time-text">剩余时间</text>
          </div>

          <div class="flow-box" ref="handleBox">
            <div class="flow-box-div">
              <div class="flow-bar flow-1"></div>
              <text class="flow-text">洗涤</text>
            </div>
            <div class="flow-box-div">
              <div class="flow-bar flow-2"></div>
              <text class="flow-text">漂洗</text>
            </div>
            <div class="flow-box-div">
              <div class="flow-bar flow-3"></div>
              <text class="flow-text">脱水</text>
            </div>
          </div>
        </div>
      </div>
      <!-- 滑动时需处理的部分---end -->
      <div class="board-box">
        <dof-board>
          <dof-card class="m-b-10">
            <div class="placeholder"></div>
          </dof-card>
          <dof-row class="m-b-10">
            <dof-col>
              <dof-card>
                <div class="placeholder"></div>
              </dof-card>
            </dof-col>
            <dof-col>
              <dof-card>
                <div class="placeholder"></div>
              </dof-card>
            </dof-col>
          </dof-row>
          <dof-row class="m-b-10">
            <dof-col>
              <dof-card>
                <div class="placeholder"></div>
              </dof-card>
            </dof-col>
          </dof-row>
          <dof-row class="m-b-10">
            <dof-col>
              <dof-card>
                <div class="placeholder"></div>
              </dof-card>
            </dof-col>
            <dof-col>
              <dof-card>
                <div class="placeholder"></div>
              </dof-card>
            </dof-col>
          </dof-row>
          <dof-row class="m-b-10">
            <dof-col>
              <dof-card>
                <div class="placeholder"></div>
              </dof-card>
            </dof-col>
          </dof-row>
        </dof-board>
      </div>
      <div class="h-300px"></div>
      <dof-bottom-bar :tabGroups="tabTitles"></dof-bottom-bar>
    </scroller>
  </div>
</template>

<style scoped>
.wrapper {
  background-color: #f9f9f9;
  position: relative;
}
.scroller {
  position: relative;
  flex: 1;
  background-color: #f9f9f9;
  width: 750px;
  height: 2000px;
}
.h-300px {
  width: 750px;
  height: 0;
  padding-bottom: 300px;
  background-color: #f9f9f9;
  position: relative;
  top: -2px;
}
.main-content {
  width: 750px;
  position: absolute;
  top: 0;
  left: 0;
}
.m-b-10 {
  margin-bottom: 20px;
}

.placeholder {
  height: 160px;
}
.main-image {
  width: 476px;
  height: 476px;
  opacity: 1;
}
.content-detail {
  position: relative;
  display: flex;
  justify-content: center;
  align-items: center;
  transition-property: all;
  transition-duration: 0.3s;
  transition-delay: 0s;
  transition-timing-function: cubic-bezier(0.25, 0.1, 0.25, 1);
  transform: scale(1, 1);
}
.cold-box {
  padding: 20px 32px;
  background-color: #eadede;
  margin: 24px auto 0;
  border-radius: 40px;
  display: flex;
  flex-direction: row;
  justify-content: center;
  align-items: center;
}
.cold-box-dot {
  width: 14px;
  height: 14px;
  border-radius: 14px;
  margin-right: 16px;
  background-color: #25cf42;
}
.cold-box-text {
  font-size: 28px;
  color: #666666;
}
.cold-box-line {
  margin: 0 24px;
  width: 2px;
  height: 40px;
  background-color: #c9c9c9;
}
.time-box {
  display: flex;
  flex-direction: row;
  align-items: center;
  justify-content: center;
}
.time-box-text {
  font-size: 88px;
  color: #333333;
  margin-right: 10px;
  display: flex;
  flex-direction: column;
  align-items: center;
  justify-content: space-around;
}
.time-box-dot-section {
  width: 20px;
  height: 50px;
}
.time-box-dot {
  width: 10px;
  height: 10px;
  background-color: #333333;
  border-radius: 10px;
}
.left-time-text {
  font-size: 24px;
  color: #999999;
  margin: 10px 0 56px;
  text-align: center;
}
.flow-box {
  display: flex;
  flex-direction: row;
}
.flow-box-div {
  margin-right: 4px;
}
.flow-bar {
  width: 100px;
  height: 16px;
  background-color: #e1e1e1;
}
.flow-1 {
  background-color: #29c3ff;
  border-top-left-radius: 16px;
  border-bottom-left-radius: 16px;
}
.flow-3 {
  border-top-right-radius: 16px;
  border-bottom-right-radius: 16px;
}
.flow-text {
  font-size: 20px;
  color: #666666;
  margin-top: 10px;
  text-align: center;
}

.sticy-box {
  position: fixed;
  left: 0;
  z-index: 100;
  width: 750px;
  height: 500px;
  opacity: 0;
  transition-property: all;
  transition-duration: 0.2s;
  transition-delay: 0s;
  transition-timing-function: cubic-bezier(0.25, 0.1, 0.25, 1);
}
.sticky-content {
  position: absolute;
  left: 0;
  top: 0;
  width: 750px;
  height: 500px;
  display: flex;
  align-items: center;
}
.cold-box-sticky {
  margin-bottom: 30px;
}
</style>

<script>
import Title from 'src/_mods/title.vue'
import Category from 'src/_mods/catalog'
const dom = weex.requireModule('dom')
import {
  DofMinibar,
  DofGradient,
  DofBoard,
  DofRow,
  DofCol,
  DofCardGroup,
  DofCard,
  DofCardItem,
  DofBottomBar
} from 'dolphin-weex-ui'
const modal = weex.requireModule('modal')

module.exports = {
  components: {
    Title,
    Category,
    DofMinibar,
    DofGradient,
    DofBoard,
    DofRow,
    DofCol,
    DofCardGroup,
    DofCard,
    DofCardItem,
    DofBottomBar
  },
  data() {
    return {
      wash_clothes_img: 'http://dolphin-weex-dev.msmartlife.cn/cdn/images/common/wash-clothes.png',
      leftButton: 'http://dolphin-weex-dev.msmartlife.cn/cdn/images/header/icon_back_white@3x.png',
      width: '750',
      height: '700',
      startColor: '#29C3FF',
      endColor: '#ffffff',
      value: '0',
      tabTitles: [
        {
          type: 'power',
          title: 'power',
          text: '开关',
          iconColor: '#267AFF',
          disabled: false,
          icon: 'http://dolphin-weex-dev.msmartlife.cn/cdn/images/sample/water_heater/calorifier_icon_on@3x.png'
        },
        {
          type: 'timing',
          title: 'timing',
          text: '预约',
          iconColor: '#f2f2f2',
          iconTextColor: '#666666',
          disabled: false,
          icon:
            'http://dolphin-weex-dev.msmartlife.cn/cdn/images/sample/water_heater/calorifier_icon_timingoffbai@3x.png'
        }
      ],
      preScrollY: 0,
      mainContentHeight: 0,
      titleBarHeight: 0,
      handleBoxTop: 0,
      stickyEleOpacity: 0
    }
  },

  mounted() {
    this.$nextTick(() => {
      let ele1 = this.$refs.mainContent
      let ele2 = this.$refs.titleBar
      let ele3 = this.$refs.handleBox
      this.getEleHeight(ele1.children[0], 'mainContent')
      this.getEleHeight(ele2.children[0], 'title')
      this.getEleHeight(ele3.children[0], 'handleBox')
    })
  },
  methods: {
    back() {},
    scrollHandler(e) {
      let currScrollY = parseInt(e.contentOffset.y)
      if (currScrollY > this.preScrollY) {
        //页面向下滑
        this.scrollDirection = 'down'
      } else {
        //页面向上滑
        this.scrollDirection = 'up'
      }
      this.preScrollY = currScrollY
      this.geta()
    },
    getEleHeight(ele, str) {
      let self = this
      dom.getComponentRect(ele, result => {
        let size = result.size || {}
        let height = parseInt(size.height)
        if (!height) {
          self.getEleHeight(ele)
        } else {
          if (str == 'mainContent') {
            self.mainContentHeight = height
          } else if (str == 'title') {
            self.titleBarHeight = height
          } else if (str == 'handleBox') {
            self.handleBoxTop = parseFloat(size.top / 2).toFixed(1)
          }
        }
      })
    },
    geta() {
      let { preScrollY, handleBoxTop, titleBarHeight } = this
      let scrollTop = parseInt(preScrollY * -1) - titleBarHeight
      this.stickyEleOpacity = scrollTop != 0 && scrollTop >= handleBoxTop ? 1 : 0
    }
  },

  computed: {
    elementStyle() {
      let { preScrollY, mainContentHeight } = this
      let scrollTop = preScrollY * -1
      let currScale = parseFloat(1 - parseFloat(scrollTop / mainContentHeight).toFixed(2)).toFixed(2)
      if (scrollTop >= mainContentHeight) {
        currScale = 1
      }
      if (currScale <= 0.8) {
        currScale = 0.8
      }
      if (currScale >= 1) {
        currScale = 1
      }
      return {
        transform: `scale(${currScale}, ${currScale})`,
        opacity: currScale
      }
    },
    stickyEleStyle() {
      let { preScrollY, handleBoxTop, titleBarHeight } = this
      let scrollTop = preScrollY * -1 - titleBarHeight
      return {
        opacity: scrollTop != 0 && scrollTop >= handleBoxTop ? 1 : 0
      }
    }
  }
}
</script>


1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
381
382
383
384
385
386
387
388
389
390
391
392
393
394
395
396
397
398
399
400
401
402
403
404
405
406
407
408
409
410
411
412
413
414
415
416
417
418
419
420
421
422
423
424
425
426
427
428
429
430
431
432
433
434
435
436
437
438
439
440
441
442
Last Updated: 9/22/2022, 6:22:23 PM
