# 9.3 曲线图
曲线图组件
- APP内置组件,可直接在template中使用,不需要import导入和注册 。
已提供基础样式,根据产品需求,可按照规范新增样式
# 实例 :

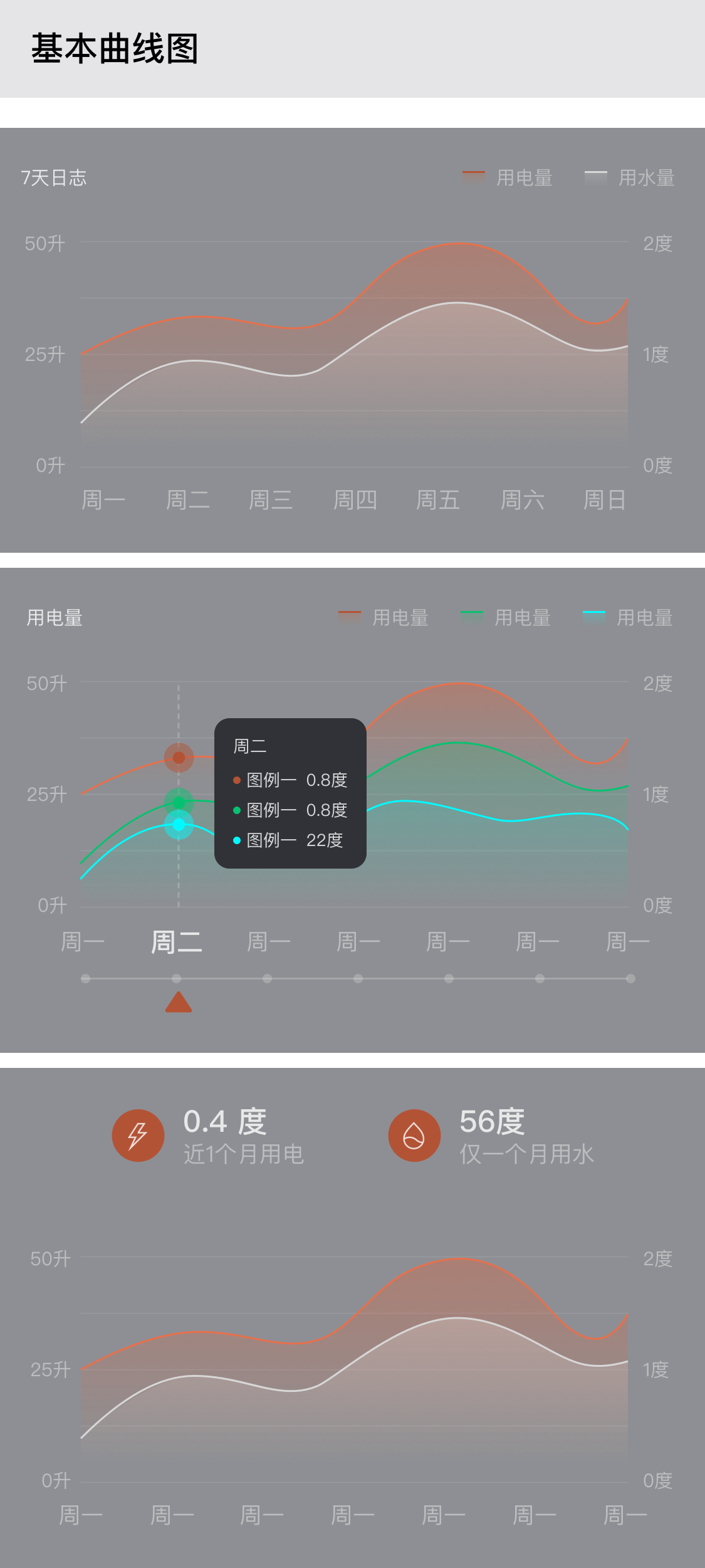

折线图
扫码预览

# 示例
<template>
<div class="wrapper">
<dof-minibar title="9.3 曲线图" @click.native="reloadPage"></dof-minibar>
<SwitchTheme />
<scroller class="scroller">
<div class="title-box">
<text class="title-text">基础样式</text>
</div>
<div class="barchart-wrapper">
<div class="space"></div>
<midea-linechart-view class="line-chart" :data="chartData0"></midea-linechart-view>
</div>
<div class="barchart-wrapper">
<div class="space"></div>
<midea-linechart-view class="line-chart" :data="chartData1"></midea-linechart-view>
</div>
<div class="barchart-wrapper last-wrapper">
<div class="legend-box">
<div class="legend">
<div class="legend-img">
<dof-iconfont :code="'\u4741'" :size="50" :color="'#fff'"></dof-iconfont>
</div>
<div class="legend-text">
<text class="legend-num">0.4度</text>
<text class="legend-sub">近一个月用电</text>
</div>
</div>
<div class="legend">
<div class="legend-img">
<dof-iconfont :code="'\u4802'" :size="50" :color="'#fff'"></dof-iconfont>
</div>
<div class="legend-text">
<text class="legend-num">56度</text>
<text class="legend-sub">仅一个月用水</text>
</div>
</div>
</div>
<midea-linechart-view class="line-chart" :data="chartData2"></midea-linechart-view>
</div>
</scroller>
</div>
</template>
<script>
// [1,30]区间的数字value
const nums = function() {
let arr = []
for (let i = 1; i <= 30; i++) {
arr.push(i)
}
return arr
}
// 生成值为1-30字符串的labels
const labels = function() {
let arr = []
for (let i = 1; i <= 30; i++) {
if (i === 2 || i === 10) {
arr.push(i + '')
} else {
arr.push('')
}
}
return arr
}
//随机生成[30,40]随机数
const randomNum = function() {
let arr = []
for (let i = 0; i < 30; i++) {
var random = Math.floor(Math.random() * 10 + 30)
arr.push(random)
}
return arr
}
const lowRandomNum = randomNum().map(x => x - 10)
console.log('num', randomNum())
console.log('lowRandomNum', lowRandomNum)
const isIos = weex.config.env.platform == 'iOS' ? true : false
import { DofMinibar, DofIconfont } from 'dolphin-weex-ui'
import SwitchTheme from 'src/components/SwitchTheme.vue'
export default {
components: { DofMinibar, SwitchTheme, DofIconfont },
data() {
return {
chartData0: {
x: {
value: [1, 2, 3, 4, 5, 6, 7],
label: ['周一', '周二', '周三', '周四', '周五', '周六', '周日']
},
y: [
{
value: [25, 30, 28, 40, 45, 35, 50],
title: '用水量',
color: '#E7704C', //折线颜色
starcolor: '#00E7704C', //区域背景渐变开始颜色(从下自上)
endcolor: '#ccE7704C', //区域背景渐变结束颜色(从下自上)
smooth: 1, //0直线,1平滑
lineWidth: 1, //折线宽度
//竖线
drawVerticalHighlightIndicatorEnabled: true, //默认false 是否绘制高亮时的竖线,默认不显示 6.5.1支持
highlightColor: '#8E969B', //竖线的颜色 6.5.1支持
highlightLineWidth: 1, //竖线的宽度 默认0.5 6.5.1支持
highlightLineDashLengths: [2, 3] //第一位代表实线宽度,第二位代表虚线的宽度6.5.1支持
},
{
value: [2, 3, 2, 3, 4, 2, 4],
title: '用电量',
color: '#D7D7D7', //折线颜色
starcolor: '#00ffffff', //区域背景渐变开始颜色(从下自上)
endcolor: '#ccffffff', //区域背景渐变结束颜色(从下自上)
smooth: 1, //0直线,1平滑
lineWidth: 1, //折线宽度
axisDependency: 'right', //依赖的坐标轴。默认对齐left , 设置right 才会生效变化
//竖线
drawVerticalHighlightIndicatorEnabled: true, //默认false 是否绘制高亮时的竖线,默认不显示 6.5.1支持
highlightColor: '#8E969B', //竖线的颜色 6.5.1支持
highlightLineWidth: 1, //竖线的宽度 默认0.5 6.5.1支持
highlightLineDashLengths: [2, 3] //第一位代表实线宽度,第二位代表虚线的宽度6.5.1支持
}
],
xAxisColor: '#1affffff', //x轴线的颜色,如果不设置,则默认是黑色线
yAxisGridAlpha: 0.1, //y轴上分割线透明度,安卓分割线的颜色不支持透明度,需要设置该属性
yAxisColor: '#00ffffff', //y轴线的颜色,如果不设置,则默认是黑色线
xAxisLabelColor: '#66ffffff', //x label的字体颜色,如果不设置,则默认是黑色字体颜色
yAxisLabelColor: '#66ffffff', //y label的字体颜色,如果不设置,则默认是黑色字体颜色
xAxisGridLine: false, //iOS上默认关闭 设置是否开启X轴分割线绘制
yAxisGridLine: true, //iOS上默认关闭 设置是否开启X轴分割线绘制 add by lau
xAxisGridColor: '#1affffff', //x轴上分割线颜色
yAxisGridColor: '#1affffff', //y轴上分割线颜色 add by lau
xAxisLabelTextSize: 10, //x轴文字大小
yRightAxisColor: '#00ffffff', //右y轴线的颜色
yRightAxisLabelColor: '#66ffffff', // label的字体颜色,如果不设置,则默认是黑色字体颜色
yAxisLabelTextSize: 10, //y轴文字大小
xAxisGridAlpha: 1, //x轴上分割线透明度
yAxisLabelShow: true, //是否只显示最大最小值,true: 显示y轴值;false: 不显示y轴值;默认true
isUnEquelDistance: true, //iOS6.2新增不等距属性,默认打开(iOS专用)false关闭
granularity: 1, //间距本身是自适应的,可以使用该值进行调整间距的比例,比如自适应间距是20px,granularity设置为2的时候,界面显示的间距为 40px
description: '',
xAxisYOffset: 11, //x轴文字和x轴的距离
yGraduationLabel: '升',
yRightAxisEnable: true, //是否显示右y轴
yRightAxisMaximum: 5, //右y轴刻度最大值
yRightGraduationLabel: '度', //右y轴刻度单位
legend: {
position: 'TOP_RIGHT', //"TOP_LEFT"/"TOP_RIGHT"
orientation: 'HORIZONTAL', //"HORIZONTAL"/"BOTTOM_RIGHT"
textColor: '#66ffffff', //图例文字颜色(8.7)
textSize: 10, //图例文字大小(8.7)
xOffset: 10, //图例水平间距(8.7)
form: 'LINE', //图例类型NONE, EMPTY, SQUARE, CIRCLE, LINE(8.7)
formSize: 10, //图例大小(8.7)
formLineWidth: 1, //图例线宽大小(8.7)
space: 16 //图例之间的间距(8.7)
},
unit: {
x: '',
y: '七天日志'
},
extraTopOffset: 20, //顶部padding(8.7)
extraLeftOffset: 16, //左边padding(8.7)
extraRightOffset: 16, //右边padding(8.7)
extraBottomOffset: 20 //底部padding(8.7)
},
chartData1: {
x: {
value: [1, 2, 3, 4, 5, 6, 7],
label: ['周一', '周二', '周三', '周四', '周五', '周六', '周日']
},
y: [
{
value: [25, 30, 28, 40, 45, 35, 50],
title: '用水量',
color: '#E7704C', //折线颜色
starcolor: '#00E7704C', //区域背景渐变开始颜色(从下自上)
endcolor: '#E7704C', //区域背景渐变结束颜色(从下自上)
smooth: 1, //0直线,1平滑
lineWidth: 1, //折线宽度
isDrawHighLightCircles: true, //是否启动 点击高亮 (5.12)
highLightCircleRadius: 8, // 高亮的圆圈半径设置(5.12)
highLightCircleHoleRadius: 3.5, // 高亮的圆内半径设置(5.12)
highLightCircleOutsideWidth: 0, // 高亮的圆外宽度设置(5.12)
highLightCircleColor: '#80B35336', // 高亮的圆圈颜色(5.12)
highLightCircleHoleColor: '#B35336', // 高亮的圆内颜色(5.12)
highLightCircleOutsideColor: '#00B35336', // 高亮的圆外颜色设置(5.12)
isVerticalHighlightIndicatorEnabled: true, //垂直高亮线是否显示,默认不显示(8.7)
highLightColor: '#33ffffff', //高亮线的颜色(8.7)
highLightLineWidth: 1, //高亮线的线宽(8.7)
highLineDashAble: true //true-虚线,false-实线,默认是为false(8.7)
},
{
value: [2, 3, 2, 3, 4, 2, 5],
title: '用电量2',
color: '#06C270', //折线颜色
starcolor: '#0006C270', //区域背景渐变开始颜色(从下自上)
endcolor: '#cc06C270', //区域背景渐变结束颜色(从下自上)
smooth: 1, //0直线,1平滑
lineWidth: 1, //折线宽度
axisDependency: 'right', //依赖的坐标轴。默认对齐left , 设置right 才会生效变化
isDrawHighLightCircles: true, //是否启动 点击高亮 (5.12)
highLightCircleRadius: 8, // 高亮的圆圈半径设置(5.12)
highLightCircleHoleRadius: 3.5, // 高亮的圆内半径设置(5.12)
highLightCircleOutsideWidth: 0, // 高亮的圆外宽度设置(5.12)
highLightCircleColor: '#8006C270', // 高亮的圆圈颜色(5.12)
highLightCircleHoleColor: '#06C270', // 高亮的圆内颜色(5.12)
highLightCircleOutsideColor: '#0006C270', // 高亮的圆外颜色设置(5.12)
//竖线
drawVerticalHighlightIndicatorEnabled: true, //默认false 是否绘制高亮时的竖线,默认不显示 6.5.1支持
highlightColor: '#8E969B', //竖线的颜色 6.5.1支持
highlightLineWidth: 1, //竖线的宽度 默认0.5 6.5.1支持
highlightLineDashLengths: [2, 3] //第一位代表实线宽度,第二位代表虚线的宽度6.5.1支持
},
{
value: [1, 2, 1, 2, 3, 1, 4],
title: '用电量3',
color: '#00FAFF', //折线颜色
starcolor: '#0000FAFF', //区域背景渐变开始颜色(从下自上)
endcolor: '#cc00FAFF', //区域背景渐变结束颜色(从下自上)
smooth: 1, //0直线,1平滑
lineWidth: 1, //折线宽度
axisDependency: 'right', //依赖的坐标轴。默认对齐left , 设置right 才会生效变化
isDrawHighLightCircles: true, //是否启动 点击高亮 (5.12)
highLightCircleRadius: 8, // 高亮的圆圈半径设置(5.12)
highLightCircleHoleRadius: 3.5, // 高亮的圆内半径设置(5.12)
highLightCircleOutsideWidth: 0, // 高亮的圆外宽度设置(5.12)
highLightCircleColor: '#8000FAFF', // 高亮的圆圈颜色(5.12)
highLightCircleHoleColor: '#00FAFF', // 高亮的圆内颜色(5.12)
highLightCircleOutsideColor: '#0000FAFF', // 高亮的圆外颜色设置(5.12)
//竖线
drawVerticalHighlightIndicatorEnabled: true, //默认false 是否绘制高亮时的竖线,默认不显示 6.5.1支持
highlightColor: '#8E969B', //竖线的颜色 6.5.1支持
highlightLineWidth: 1, //竖线的宽度 默认0.5 6.5.1支持
highlightLineDashLengths: [2, 3] //第一位代表实线宽度,第二位代表虚线的宽度6.5.1支持
}
],
xAxisLabelHighLightColor: '#ccffffff', //x轴刻度选择后颜色
xAxisLabelHighLightTextSize: 14, //x轴高亮label字体大小(8.23新增)
marker: {
markerShow: true, //默认为false,不显示maker
markerColor: '#313237', //默认为黑色,marker的背景色
markerTextColor: '#ffffff', //默认白色,marker字体字颜色
markerTextSize: '9', //默认12
markerCornerRadius: '8', //圆角
markerGraduationLabel: '升', //显示单位 默认为空""
markerOffsetY: 15, //垂直间距设置
markerType: 1, //0:显示单个y轴数据,1:显示双y轴数据(8.7)
markerMarginX: 10 //marker距离选择点的右边距离,默认是10像素(8.7)
// shadowColor: '#00ff00', //阴影颜色(8.7 android)
// blur: 15, //阴影程度大小(8.7,android)
// offsetY: 1, //垂直方向阴影大小 (8.7,android)
// offsetX: 0, //水平方向阴影大小(8.7,android)
// markermaximumFractionDigits: '1',
},
barSelectIndex: this.getTime('day') - 1, //当前选中
xAxisColor: '#1affffff', //x轴线的颜色,如果不设置,则默认是黑色线
yAxisColor: '#00ffffff', //y轴线的颜色,如果不设置,则默认是黑色线
yAxisGridAlpha: 0.1, //y轴上分割线透明度,安卓分割线的颜色不支持透明度,需要设置该属性
yRightAxisColor: '#00ffffff', //右y轴线的颜色
xAxisLabelColor: '#66ffffff', //x label的字体颜色,如果不设置,则默认是黑色字体颜色
yAxisLabelColor: '#66ffffff', //y label的字体颜色,如果不设置,则默认是黑色字体颜色
yRightAxisLabelColor: '#66ffffff', // label的字体颜色,如果不设置,则默认是黑色字体颜色
xAxisGridLine: false, //iOS上默认关闭 设置是否开启X轴分割线绘制
yAxisGridLine: true, //iOS上默认关闭 设置是否开启X轴分割线绘制 add by lau
xAxisGridColor: '#1affffff', //x轴上分割线颜色
yAxisGridColor: '#1affffff', //y轴上分割线颜色 add by lau
xAxisLabelTextSize: 10, //x轴文字大小
yAxisLabelTextSize: 10, //y轴文字大小
xAxisGridAlpha: 1, //x轴上分割线透明度
yAxisLabelShow: true, //是否只显示最大最小值,true: 显示y轴值;false: 不显示y轴值;默认true
isUnEquelDistance: true, //iOS6.2新增不等距属性,默认打开(iOS专用)false关闭
granularity: 1, //间距本身是自适应的,可以使用该值进行调整间距的比例,比如自适应间距是20px,granularity设置为2的时候,界面显示的间距为 40px
description: '',
xAxisYOffset: 11, //x轴文字和x轴的距离
yGraduationLabel: '升',
yRightAxisEnable: true, //是否显示右y轴
yRightAxisMaximum: 5, //右y轴刻度最大值
yRightGraduationLabel: '度', //右y轴刻度单位
legend: {
position: 'TOP_RIGHT', //"TOP_LEFT"/"TOP_RIGHT"
orientation: 'HORIZONTAL', //"HORIZONTAL"/"BOTTOM_RIGHT"
textColor: '#66ffffff', //图例文字颜色(8.7)
textSize: 10, //图例文字大小(8.7)
xOffset: 10, //图例水平间距(8.7)
form: 'LINE', //图例类型NONE, EMPTY, SQUARE, CIRCLE, LINE(8.7)
formSize: 10, //图例大小(8.7)
formLineWidth: 1, //图例线宽大小(8.7)
space: 16 //图例之间的间距(8.7)
},
unit: {
x: '',
y: '用水量'
},
signPost: {
//底部界面 v5.8.0
lineHeight: 1, //线条的高度
lineColor: '#33ffffff', //标签线的颜色 如果不设置,则默认是黑色线
linePointRadius: 2.5, //标签线上圆点的半径, 默认10
lineMarginTop: 11, //线条距离X轴的距离
lineMarginBottom: '0',
cursorColor: '#B35336', //标签(三角形)的颜色 如果不设置,则默认是黑色线
cursorMarginTop: '5', //标签(三角形)距离线条的距离
cursorHigh: '12', //标签(三角形)本身高度
cursorMarginBottom: '0',
show: true, //默认是 false 是否显示底部界面
showType: 'all', //端点的显示样式,支持 all,ends,none 三种模式
isSelectedDisappear: false, //是否标签 滑动到的端点消失不见
isSelectedShake: true //选择后是否支持震动,默认不支持,因为震动体验问题,该功能仅ios支持 (5.10)
},
extraTopOffset: 20, //顶部padding(8.7)
extraLeftOffset: 16, //左边padding(8.7)
extraRightOffset: 16, //右边padding(8.7)
extraBottomOffset: 20 //底部padding(8.7)
},
chartData2: {
x: {
value: [1, 2, 3, 4, 5, 6, 7],
label: ['周一', '周二', '周三', '周四', '周五', '周六', '周日']
},
y: [
{
value: [25, 30, 28, 40, 45, 35, 50],
title: '用水量',
color: '#E7704C', //折线颜色
starcolor: '#00E7704C', //区域背景渐变开始颜色(从下自上)
endcolor: '#ccE7704C', //区域背景渐变结束颜色(从下自上)
smooth: 1, //0直线,1平滑
lineWidth: 1, //折线宽度
//竖线
drawVerticalHighlightIndicatorEnabled: true, //默认false 是否绘制高亮时的竖线,默认不显示 6.5.1支持
highlightColor: '#8E969B', //竖线的颜色 6.5.1支持
highlightLineWidth: 1, //竖线的宽度 默认0.5 6.5.1支持
highlightLineDashLengths: [2, 3] //第一位代表实线宽度,第二位代表虚线的宽度6.5.1支持
},
{
value: [2, 3, 2, 3, 4, 2, 5],
title: '用电量',
color: '#D7D7D7', //折线颜色
starcolor: '#00ffffff', //区域背景渐变开始颜色(从下自上)
endcolor: '#ccffffff', //区域背景渐变结束颜色(从下自上)
smooth: 1, //0直线,1平滑
lineWidth: 1, //折线宽度
axisDependency: 'right', //依赖的坐标轴。默认对齐left , 设置right 才会生效变化
//竖线
drawVerticalHighlightIndicatorEnabled: true, //默认false 是否绘制高亮时的竖线,默认不显示 6.5.1支持
highlightColor: '#8E969B', //竖线的颜色 6.5.1支持
highlightLineWidth: 1, //竖线的宽度 默认0.5 6.5.1支持
highlightLineDashLengths: [2, 3] //第一位代表实线宽度,第二位代表虚线的宽度6.5.1支持
}
],
xAxisColor: '#1affffff', //x轴线的颜色,如果不设置,则默认是黑色线
yAxisColor: '#00ffffff', //y轴线的颜色,如果不设置,则默认是黑色线
yAxisGridAlpha: 0.1, //y轴上分割线透明度,安卓分割线的颜色不支持透明度,需要设置该属性
yRightAxisColor: '#00ffffff', //右y轴线的颜色
xAxisLabelColor: '#66ffffff', //x label的字体颜色,如果不设置,则默认是黑色字体颜色
yAxisLabelColor: '#66ffffff', //y label的字体颜色,如果不设置,则默认是黑色字体颜色
yRightAxisLabelColor: '#66ffffff', // label的字体颜色,如果不设置,则默认是黑色字体颜色
xAxisGridLine: false, //iOS上默认关闭 设置是否开启X轴分割线绘制
yAxisGridLine: true, //iOS上默认关闭 设置是否开启X轴分割线绘制 add by lau
xAxisGridColor: '#1affffff', //x轴上分割线颜色
yAxisGridColor: '#1affffff', //y轴上分割线颜色 add by lau
xAxisLabelTextSize: 10, //x轴文字大小
yAxisLabelTextSize: 10, //y轴文字大小
xAxisGridAlpha: 1, //x轴上分割线透明度
yAxisLabelShow: true, //是否只显示最大最小值,true: 显示y轴值;false: 不显示y轴值;默认true
isUnEquelDistance: true, //iOS6.2新增不等距属性,默认打开(iOS专用)false关闭
granularity: 1, //间距本身是自适应的,可以使用该值进行调整间距的比例,比如自适应间距是20px,granularity设置为2的时候,界面显示的间距为 40px
description: '',
xAxisYOffset: 11, //x轴文字和x轴的距离
yGraduationLabel: '升',
yRightAxisEnable: true, //是否显示右y轴
yRightAxisMaximum: 5, //右y轴刻度最大值
yRightGraduationLabel: '度', //右y轴刻度单位
legendHide: true, //是否需要隐藏legend,默认不隐藏
legend: {
position: 'TOP_RIGHT', //"TOP_LEFT"/"TOP_RIGHT"
orientation: 'HORIZONTAL', //"HORIZONTAL"/"BOTTOM_RIGHT"
textColor: '#66ffffff', //图例文字颜色(8.7)
textSize: 10, //图例文字大小(8.7)
xOffset: 10, //图例水平间距(8.7)
form: 'LINE', //图例类型NONE, EMPTY, SQUARE, CIRCLE, LINE(8.7)
formSize: 10, //图例大小(8.7)
formLineWidth: 1, //图例线宽大小(8.7)
space: 16 //图例之间的间距(8.7)
},
unit: {
x: '',
y: ''
},
extraTopOffset: 20, //顶部padding(8.7)
extraLeftOffset: 16, //左边padding(8.7)
extraRightOffset: 16, //右边padding(8.7)
extraBottomOffset: 20 //底部padding(8.7)
}
}
},
created() {
/**
* 设置图表背景色,
*ios有bug,需要用css设置。
* 安卓正常,安卓不能用css设置,需要用配置
*/
if (!isIos) {
this.chartData0.background = '#9943464d'
this.chartData1.background = '#9943464d'
this.chartData2.background = '#9943464d'
}
},
methods: {
reloadPage() {
this.$bridge.reload()
},
getTime(type) {
var now = new Date()
var month = now.getMonth() //得到月份
var date = now.getDate() //得到日期
var day = now.getDay() //得到周几
switch (type) {
case 'month':
return now.getMonth()
break
case 'date':
return now.getDate()
break
default:
return now.getDay()
break
}
}
}
}
</script>
<style scoped>
@media screen and (weex-theme: colmo) {
.wrapper {
background-color: #151617;
}
}
.wrapper {
width: 750px;
background-color: #ffffff;
align-items: center;
}
.title-box {
padding: 32px;
background-color: #e5e5e8;
margin-bottom: 32px;
}
.title-text {
font-family: PingFangSC-Medium;
font-size: 36px;
color: #000000;
font-weight: 500;
}
.chart-header {
flex-direction: row;
background: rgba(67, 70, 77, 0.6);
justify-content: space-between;
padding: 36px 36px 0 36px;
}
.title-sub {
font-family: PingFangSC-Regular;
font-size: 32px;
color: rgba(255, 255, 255, 0.8);
font-weight: 400;
}
.barchart-wrapper {
flex-direction: column;
justify-content: center;
margin-bottom: 16px;
}
.line-chart {
background: rgba(67, 70, 77, 0.6);
width: 750px;
height: 648px;
}
.last-wrapper {
margin-bottom: 200px;
}
.legend-box {
flex-direction: row;
justify-content: space-around;
background: rgba(67, 70, 77, 0.6);
padding-top: 40px;
padding-bottom: 40px;
}
.legend {
flex-direction: row;
}
.legend-img {
width: 52px;
height: 52px;
border-radius: 26px;
background-color: #b35336;
margin-right: 10px;
flex-direction: row;
justify-content: center;
align-items: center;
text-align: center;
}
.legend-text {
flex-direction: column;
}
.legend-num {
font-family: PingFangSC-Medium;
font-size: 32px;
color: rgba(255, 255, 255, 0.8);
font-weight: 500;
margin-bottom: 8px;
}
.legend-sub {
font-family: PingFangSC-Regular;
font-size: 24px;
color: rgba(255, 255, 255, 0.4);
font-weight: 400;
}
.space {
background: rgba(67, 70, 77, 0.6);
height: 40px;
width: 750px;
}
</style>
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
381
382
383
384
385
386
387
388
389
390
391
392
393
394
395
396
397
398
399
400
401
402
403
404
405
406
407
408
409
410
411
412
413
414
415
416
417
418
419
420
421
422
423
424
425
426
427
428
429
430
431
432
433
434
435
436
437
438
439
440
441
442
443
444
445
446
447
448
449
450
451
452
453
454
455
456
457
458
459
460
461
462
463
464
465
466
467
468
469
470
471
472
473
474
475
476
477
478
479
480
481
482
483
484
485
486
487
488
489
490
491
492
493
494
495
496
497
498
499
500
501
502
503
504
505
506
507
508
509
510
511
512
513
514
515
516
517
518
519
520
521
522
523
524
525
526
527
528
529
530
531
532
533
534
535
536
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
381
382
383
384
385
386
387
388
389
390
391
392
393
394
395
396
397
398
399
400
401
402
403
404
405
406
407
408
409
410
411
412
413
414
415
416
417
418
419
420
421
422
423
424
425
426
427
428
429
430
431
432
433
434
435
436
437
438
439
440
441
442
443
444
445
446
447
448
449
450
451
452
453
454
455
456
457
458
459
460
461
462
463
464
465
466
467
468
469
470
471
472
473
474
475
476
477
478
479
480
481
482
483
484
485
486
487
488
489
490
491
492
493
494
495
496
497
498
499
500
501
502
503
504
505
506
507
508
509
510
511
512
513
514
515
516
517
518
519
520
521
522
523
524
525
526
527
528
529
530
531
532
533
534
535
536
